Straight Fixed Ball Point for Conductor / 26.5 kA / 0.5 s / Ø 25 mm / Copper

Straight Fixed Ball Point for Conductor / 26.5 kA / 0.5 s / Ø 25 mm / Copper

€110,54 (EXW)

Clear
2034026 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  26.5 kA
 Rated time  0.5 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2

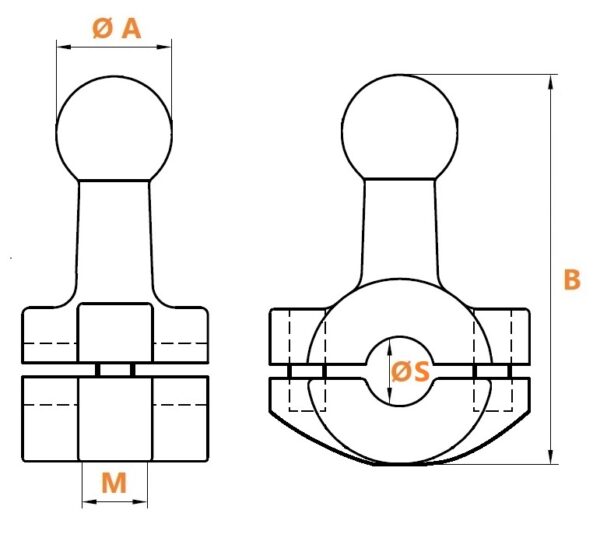

 Fixed ball point diameter A  25 mm
 Length B  82 mm
 Hexagon socket-head M  SW5
 Tightening torque  50 Nm
 Phase clamp coupling  Ball head
 Earth clamp coupling  Conductor
 Type  Straight
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  DIN VDE 0683-100
 Standard  DIN 48088-1
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 1 kg
