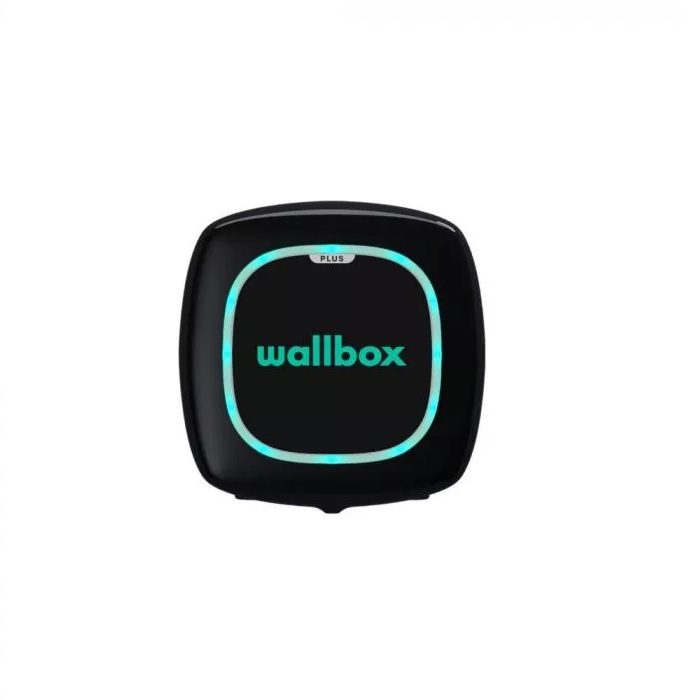

Wallbox with Charging Cable/ 11 kW / 400 V / 16 A / 5000 mm / Type 2 / Mode 3 / Three-phase / Black / 5 kg / Plastic

Wallbox with Charging Cable/ 11 kW / 400 V / 16 A / 5000 mm / Type 2 / Mode 3 / Three-phase / Black / 5 kg / Plastic

€989,90 (EXW)

50102005 Category: Tags: ,
Loading...

Description



 Country of origin  Spain
 Power  11 kW
 Voltage  400 V
 Charging Current
  16 A
 Degree of protection  IP54
 Degree of protection  IK08
 Charging cable length  5000 mm

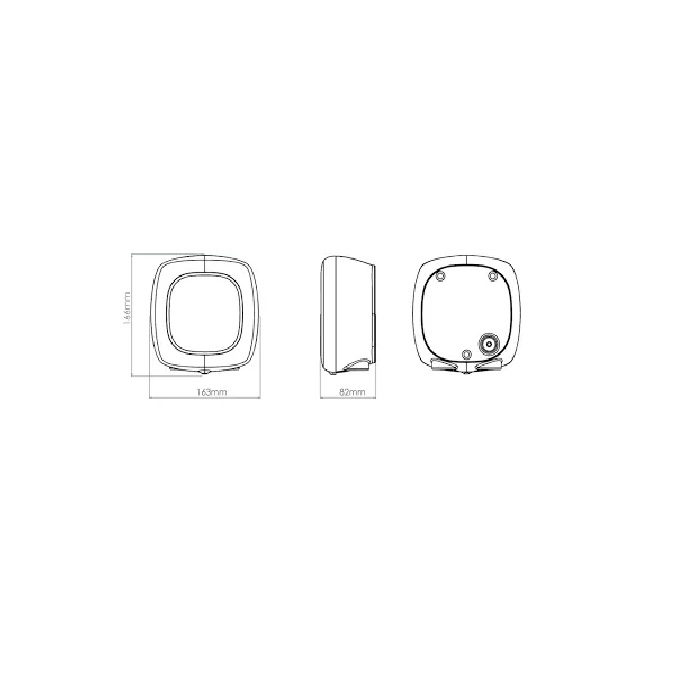

 Wallbox height  166 mm
 Wallbox width  163 mm
 Wallbox depth  82 mm

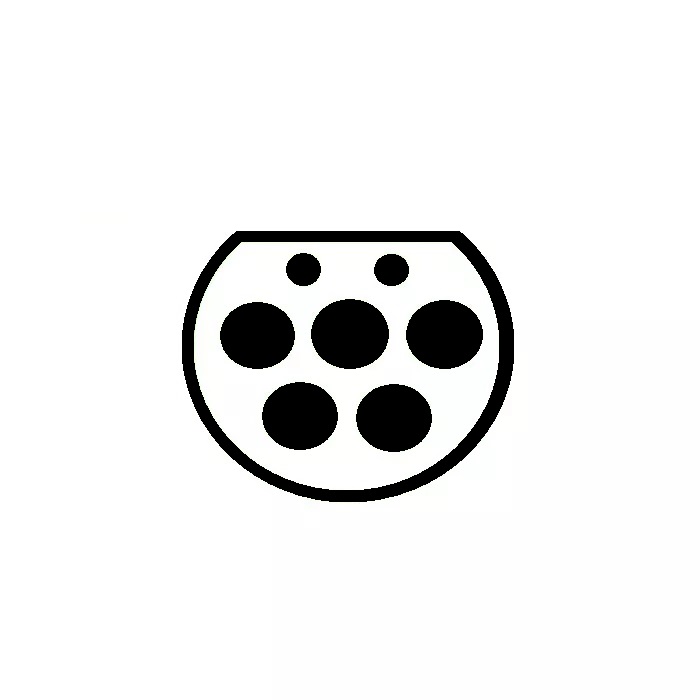

 Vehicle plug  Type 2
 Mode  3
 Type  Three-phase
 Overvoltage category  KAT III
 Fault current detection  6 mA (DC)
 DC personal protection  X
 Power sharing smart  X
 WLAN  X
 Bluetooth  X
 Wifi  X
 App  X
 Charger status information  X
 Colour  Black
 Weight  5 kg
 Material  Plastic
 Temperature
  -25…+40ºC
 Standard  IEC 61851-1
 Standard  IEC 61851-22
 Standard  IEC 62196-2
 Standard  BS 7671:2018
