Universal Clamp with T Pin Shaft / 14.7 kA / 0.5 s / Ø 20 / Ø 25 mm / Copper

Universal Clamp with T Pin Shaft / 14.7 kA / 0.5 s / Ø 20 / Ø 25 mm / Copper

€67,86 (EXW)

1031259 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Italy
 Rated short circuit current  14.7 kA
 Rated time  0.5 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2

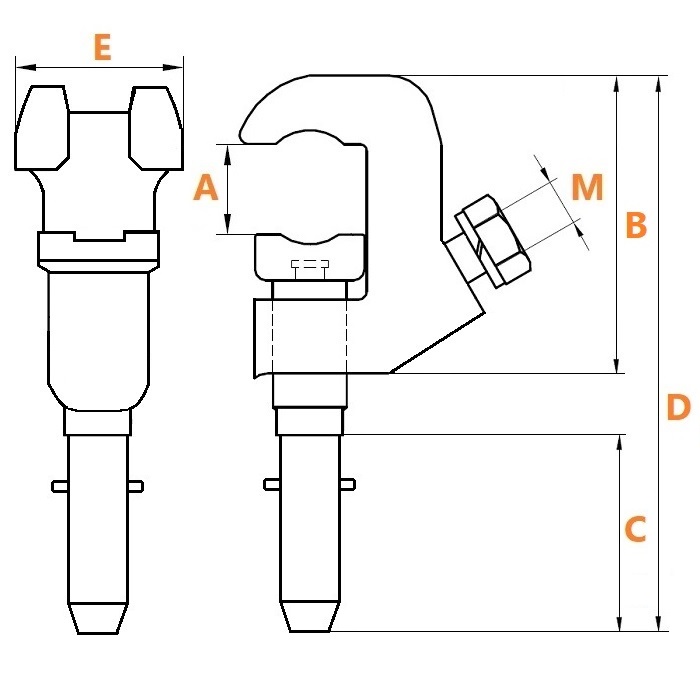

 Fixed ball point diameter A  20 mm
 Fixed ball point diameter A  25 mm
 Clamping range A  1 … 30 mm
 Conductor diameter range A  3 … 30 mm
 Length B  100 mm
 Length C  50 mm
 Length D  150 mm
 Length E  40 mm
 Thread M  M8
 Wrench M  SW15
 Phase clamp coupling  Universal
 Earth clamp coupling  T Pin
 Type  Universal
 Anti-rotation cable lug  X
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 2 kg
