Universal Clamp with Hexagon Shaft / 30 kA / 1 s / Ø 25 mm / Aluminum

Universal Clamp with Hexagon Shaft / 30 kA / 1 s / Ø 25 mm / Aluminum

€135,86 (EXW)

1031094 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Romania
 Rated short circuit current  30 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2
 Cable cross-section  120 mm2

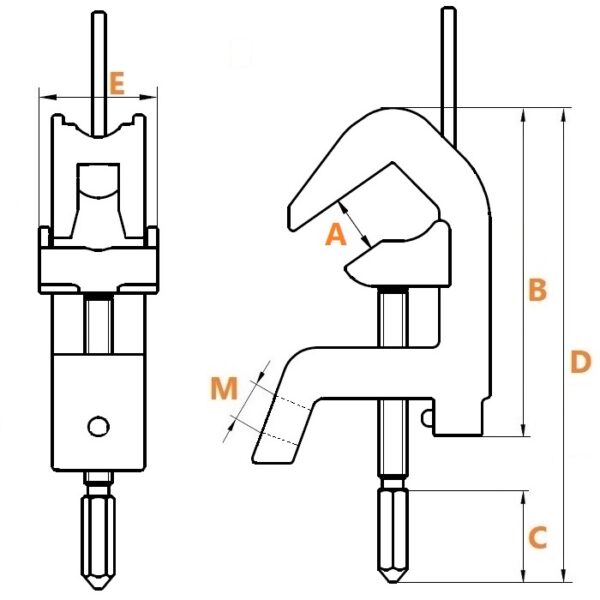

 Fixed ball point diameter A  25 mm
 Clamping range A  1 … 45 mm
 Conductor diameter range A  3 … 45 mm
 Length B  153 mm
 Length C  76 mm
 Length D  229 mm
 Length E  51 mm
 Thread M  M10
 Phase clamp coupling  Universal
 Earth clamp coupling  Hexagon (12 mm)
 Type  Universal
 Material  Aluminum alloy
 Temperature  -25 …+55 °C
 Standard  EN 61230:2008
 Standard  IEC 61230

Additional information

Weight 2 kg
