Universal Clamp with Handle / 23.75 kA / 1 s / Ø 20 mm / Ø 25 mm / Aluminum

Universal Clamp with Handle / 23.75 kA / 1 s / Ø 20 mm / Ø 25 mm / Aluminum

€163,06 (EXW)

1031213 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Romania
 Rated short circuit current  23.75 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2

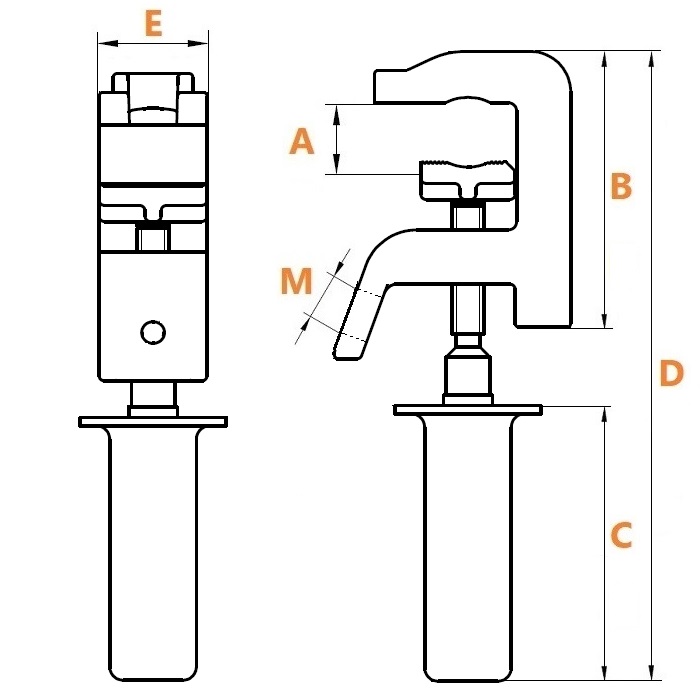

 Fixed ball point diameter A  20 mm
 Fixed ball point diameter A  25 mm
 Clamping range A  1 … 45 mm
 Conductor diameter range A  4 … 36 mm
 Length B  123 mm
 Length C  110 mm
 Length D  233 mm
 Length E  40 mm
 Thread M  M8
 Phase clamp coupling  Universal
 Earth clamp coupling  Handle
 Type  Universal
 Material  Aluminum alloy
 Temperature  -25 …+55 °C
 Standard  EN 61230:2008
 Standard  IEC 61230

Additional information

Weight 2 kg
