Straight Fixed Ball Point with Female Thread / 20 kA / 1 s / Ø 20 mm / Copper

Straight Fixed Ball Point with Female Thread / 20 kA / 1 s / Ø 20 mm / Copper

€30,61 (EXW)

2034070 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Belgium
 Rated short circuit current  20 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2
 Cable cross-section  120 mm2

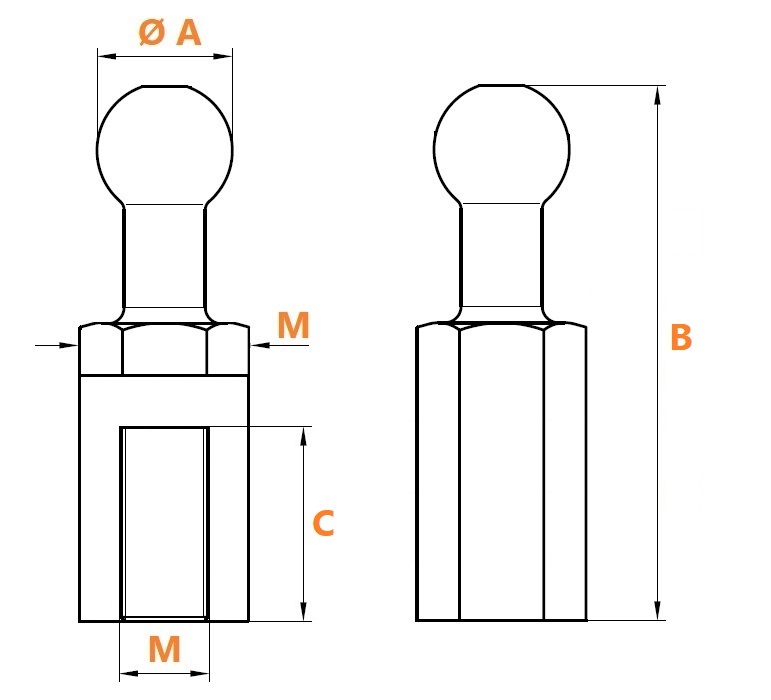

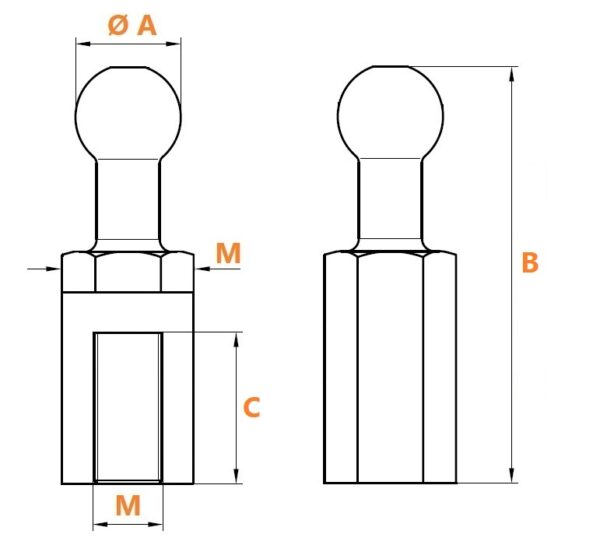

 Fixed ball point diameter A  20 mm
 Length B  59 mm
 Thread length C  20 mm
 Thread M  M12
 Wrench M  SW24
 Tightening torque  60 Nm
 Phase clamp coupling  Ball head
 Earth clamp coupling  Female thread
 Type  Straight
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 1 kg
