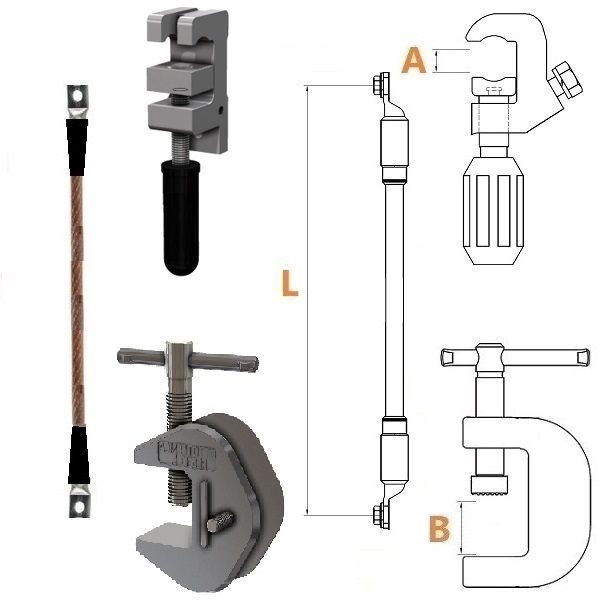

Single-Pole Earthing Device / 95 mm² / Universal Clamp with Handle / Earth Clamp with Tommy Bar / Copper

Single-Pole Earthing Device / 95 mm² / Universal Clamp with Handle / Earth Clamp with Tommy Bar / Copper

€140,90 – €1.965,90 (EXW)

Clear
1022199 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Italy
 Cable cross-section  95 mm2

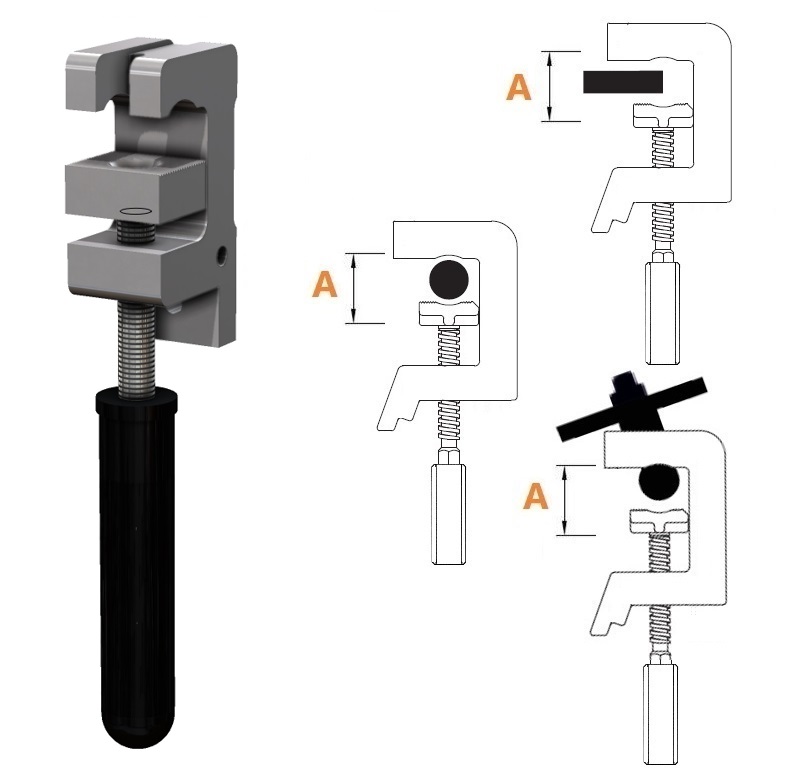

 Phase clamp coupling  Handle

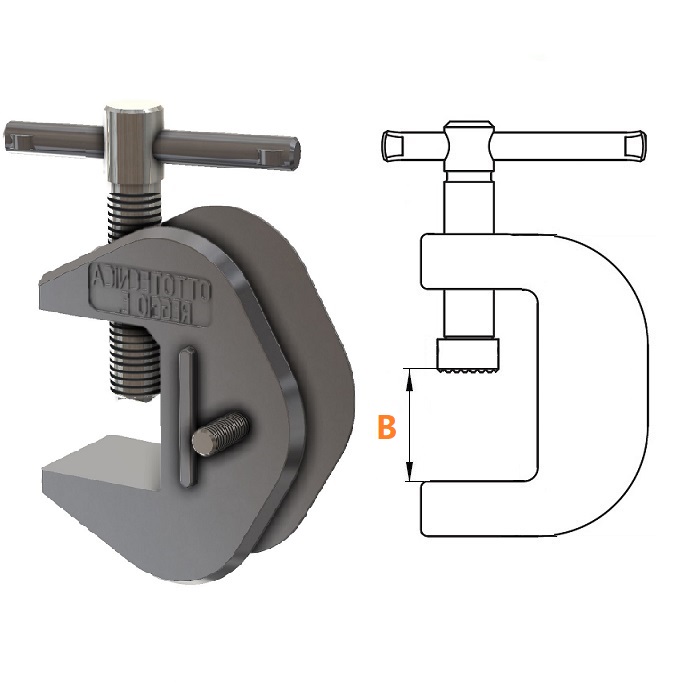

 Earth clamp coupling  Tommy bar
 Phase clamp type  1031217
 Earth clamp type  1031161
 Overmoulded  X
 Water-proof cable entries  X
 Plasticsheathed cable entries  X
 Anti-kink protection  X
 Material  Copper
 Material  Thermoplastic
 Temperature  -25 …+55 °C
 Standard  IEC 61138
 Standard  IEC 61230

Additional information

Weight 2 kg
