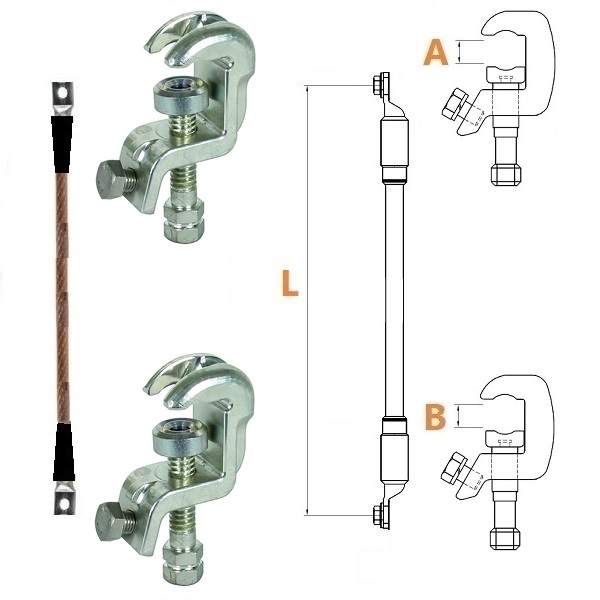

Single-Pole Earthing Device / 120 mm² / Universal Clamp with Hexagon Shaft / Copper

Single-Pole Earthing Device / 120 mm² / Universal Clamp with Hexagon Shaft / Copper

€306,90 – €4.814,90 (EXW)

Clear
1022414 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Cable cross-section  120 mm2
 Phase clamp coupling  Hexagon
 Earth clamp coupling  Hexagon

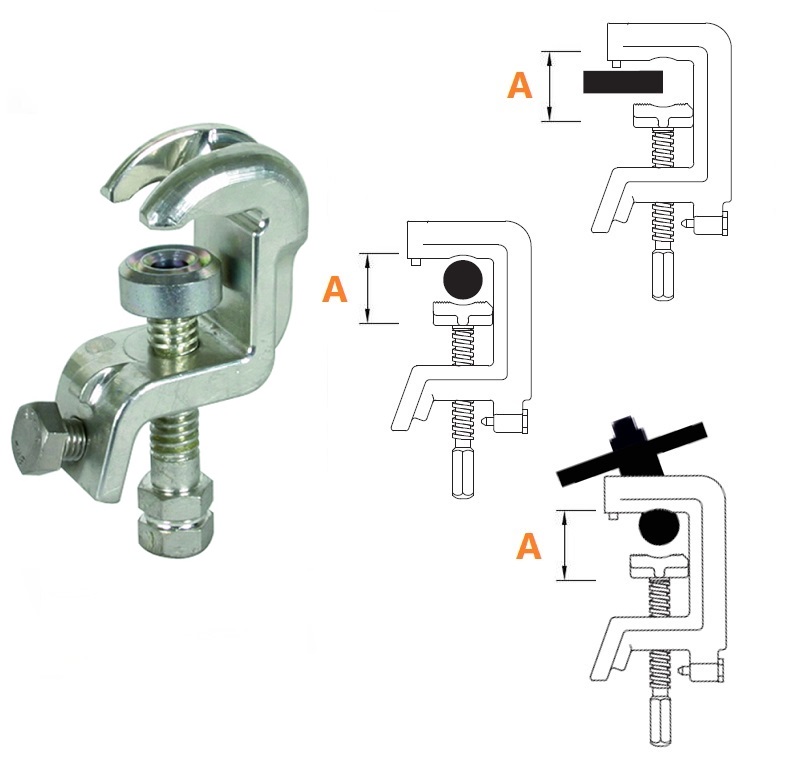

 Phase clamp type  1031011
 Earth clamp type  1031011
 Overmoulded  X
 Water-proof cable entries  X
 Plasticsheathed cable entries  X
 Anti-kink protection  X
 Material  Copper
 Material  Thermoplastic
 Temperature  -25 …+55 °C
 Standard  IEC 61138
 Standard  IEC 61230

Additional information

Weight 2 kg
