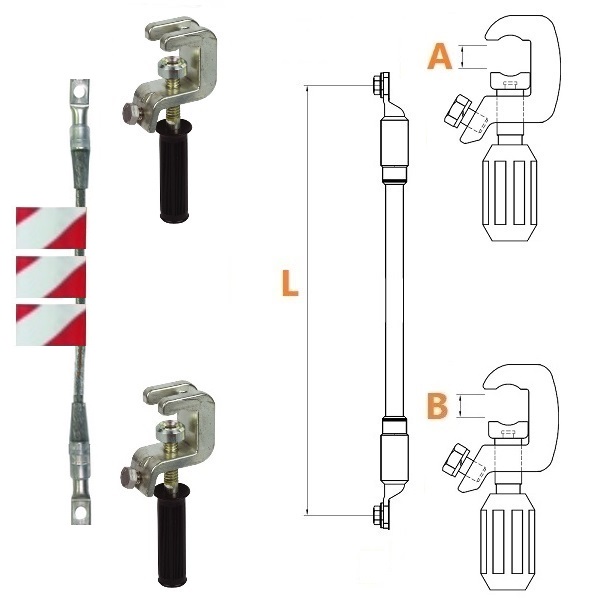

Single-Pole Earthing and Short-Circuiting Device for Railway / 70 mm² / 32 kA / 0.06 s / Universal Clamp with Handle / Aluminum

Single-Pole Earthing and Short-Circuiting Device for Railway / 70 mm² / 32 kA / 0.06 s / Universal Clamp with Handle / Aluminum

€816,90 – €1.721,90 (EXW)

Clear
1023065 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  32 kA
 Rated time  0.06 s
 Cable cross-section  70 mm2

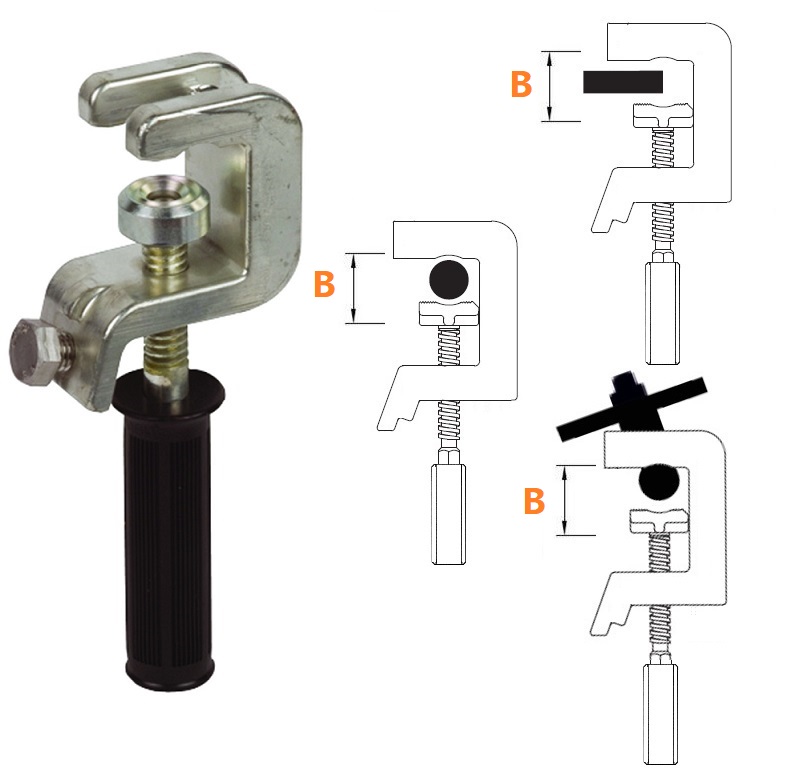

 Phase clamp coupling  Handle
 Earth clamp coupling  Handle
 Phase clamp type  1031003
 Earth clamp type  1031003
 Overmoulded  X
 Water-proof cable entries  X
 Plasticsheathed cable entries  X
 Anti-kink protection  X
 Material  Aluminum alloy
 Material  Thermoplastic
 Temperature  -25 …+55 °C
 Standard  DIN VDE 0683-100
 Standard  IEC 61138
 Standard  IEC 61230

Additional information

Weight 2 kg
