Safety & Power

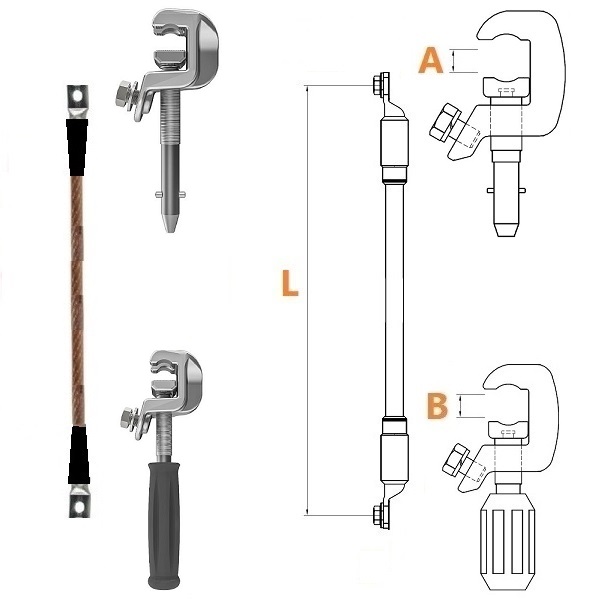

Single-Pole Earthing and Short-Circuiting Device / 25 mm² / 4.9 kA / 1 s / Universal Clamp with T Pin Shaft / Universal Clamp with Handle / Copper

Single-Pole Earthing and Short-Circuiting Device / 25 mm² / 4.9 kA / 1 s / Universal Clamp with T Pin Shaft / Universal Clamp with Handle / Copper

€162,90 – €1.182,90 (EXW)

Clear
1023086 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  4.9 kA
 Rated time  1 s
 Cable cross-section  25 mm2
 Phase clamp coupling  T Pin
 Earth clamp coupling  Handle
 Phase clamp type  1031053
 Earth clamp type  1031065
 Overmoulded  X
 Water-proof cable entries  X
 Plasticsheathed cable entries  X
 Anti-kink protection  X
 Material  Copper
 Material  Thermoplastic
 Temperature  -25 …+55 °C
 Standard  IEC 61138
 Standard  IEC 61230

Additional information

Weight 3 kg
