Single-Pole Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 400 kV / 5150 mm / Alternating Current / Visual Indication / Audible Indication / Deflecting Hoods / Dismountable

Single-Pole Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 400 kV / 5150 mm / Alternating Current / Visual Indication / Audible Indication / Deflecting Hoods / Dismountable

€1.047,06 (EXW)

Clear
1021066 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Czech Republic
 Nominal voltage  400 kV
 Rated frequency range  50 … 60 Hz

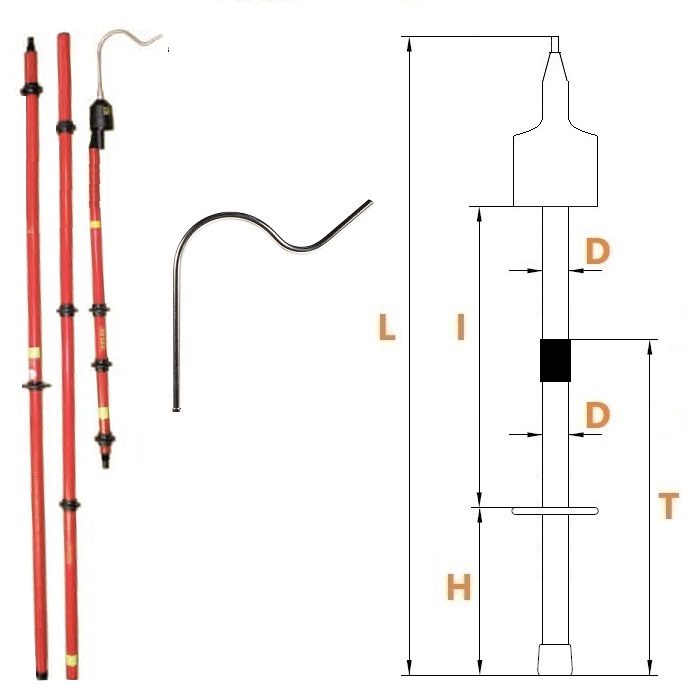

 Total length L
  5150 mm
 Transport length T
  1000 mm
 Handle length H  1000 mm
 Insulating part length I  3700 mm
 Diameter D  31 mm
 Diameter D  39 mm
 Phase clamp coupling  Pin-shaped electrode
 Earth clamp coupling  Handle
 Type  Single-pole
 Alternating current (AC)  X
 Visual indication  X
 Audible indication  X
 Self-test  X
 Deflecting hoods  X
 Dismountable  X
 Lamp  X
 Battery  X
 Case  X
 Indoor use  X
 Outdoor use  X
 Wet weather conditions  X
 Material  Polycarbonate
 Material  Glass-fibre reinforced polyester
 Temperature  -25 …+55 °C
 Standard  PNE 359700
 Standard  ČSN EN 61243-1

Additional information

Weight 2 kg
