Safety & Power
Single-Pole Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 12 … 36 kV / 1430 mm / Alternating Current / Visual Indication / Audible Indication / Dismountable

Single-Pole Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 12 … 36 kV / 1430 mm / Alternating Current / Visual Indication / Audible Indication / Dismountable

€611,86 (EXW)

Clear
1021144 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Italy
 Nominal voltage range  12 … 36 kV
 Rated frequency range  50 … 60 Hz

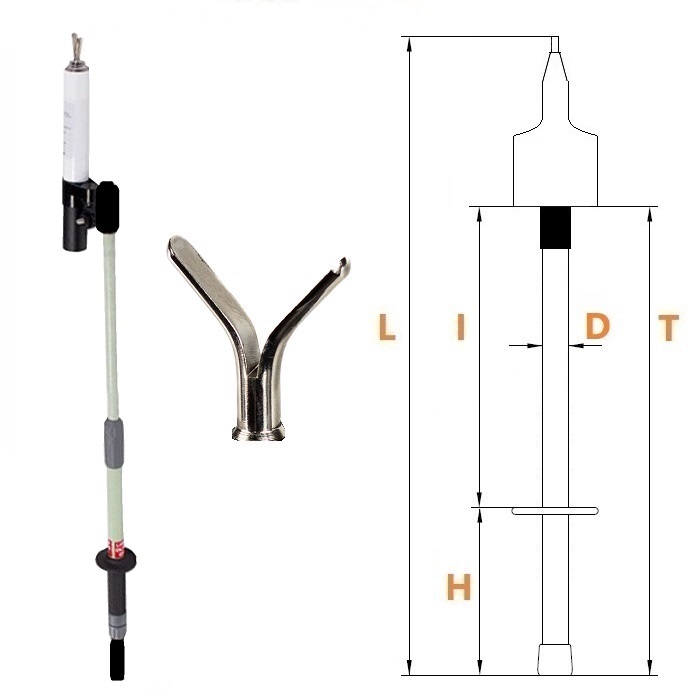

 Total length L
  1430 mm
 Transport length T
  1130 mm
 Handle length H  265 mm
 Insulating part length I  1655 mm
 Diameter D  20 mm
 Diameter D  30 mm
 Phase clamp coupling  V-Shaped electrode
 Earth clamp coupling  Handle
 Type  Single-pole
 Alternating current (AC)  X
 Visual indication  X
 Audible indication  X
 Self-test  X
 Lamp  X
 Battery  X
 Bag  X
 Dismountable  X
 Indoor use  X
 Outdoor use  X
 Dry weather conditions  X
 Material  Polycarbonate
 Material  Glass-fibre reinforced polyester
 Temperature  -25 …+55 °C
 Standard  IEC 61243-1

Additional information

Weight 3 kg
