Ring Goove Fixed Point with Female Thread / 29.6 kA / 1 s / Ø 16 mm / Copper

Ring Goove Fixed Point with Female Thread / 29.6 kA / 1 s / Ø 16 mm / Copper

€24,46 (EXW)

2034116 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  29.6 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2
 Cable cross-section  120 mm2
 Cable cross-section  150 mm2

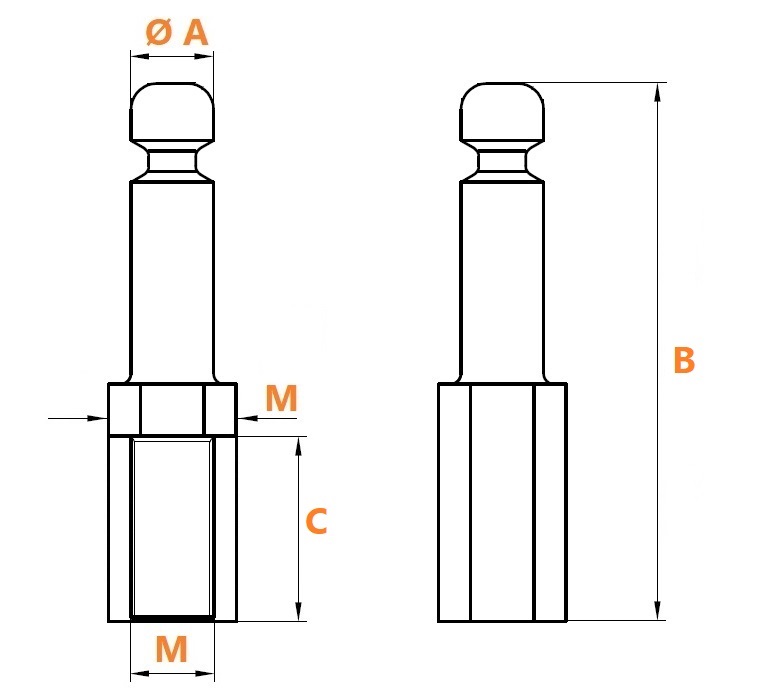

 Fixed ball point diameter A  16 mm
 Length B  95 mm
 Thread length C  16 mm
 Thread M  M12
 Wrench M  SW22
 Tightening torque  56 Nm
 Phase clamp coupling  Ball head
 Earth clamp coupling  Female thread
 Type  Straight
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  DIN 48088-2
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 2 kg
