Railway Track Earthing Clamp with Tommy Bar / 16 kA / 1 s / S49 / S54 / S64 / UIC60 / Copper

Railway Track Earthing Clamp with Tommy Bar / 16 kA / 1 s / S49 / S54 / S64 / UIC60 / Copper

€376,86 (EXW)

1031105 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Romania
 Rated short circuit current  16 kA
 Rated time  1 s
 Cable cross-section  70 mm2

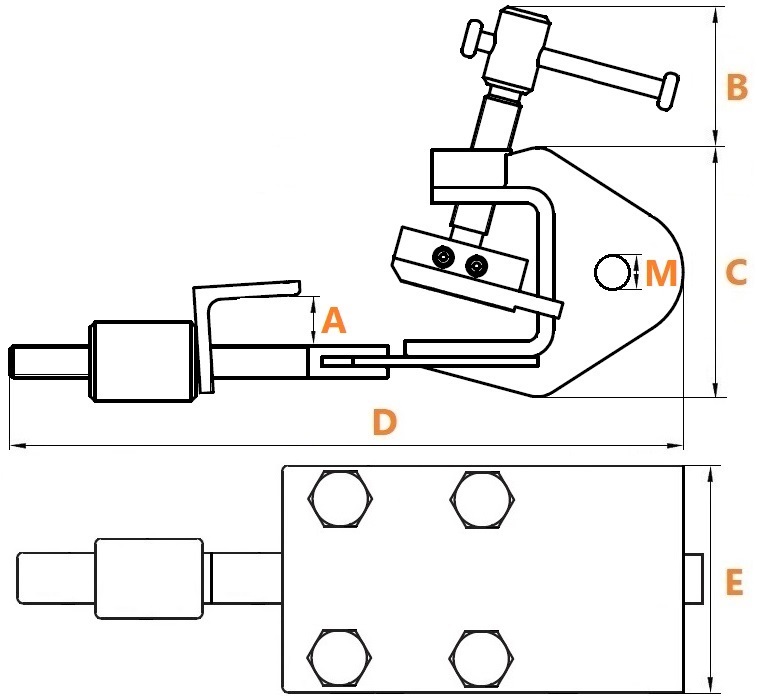

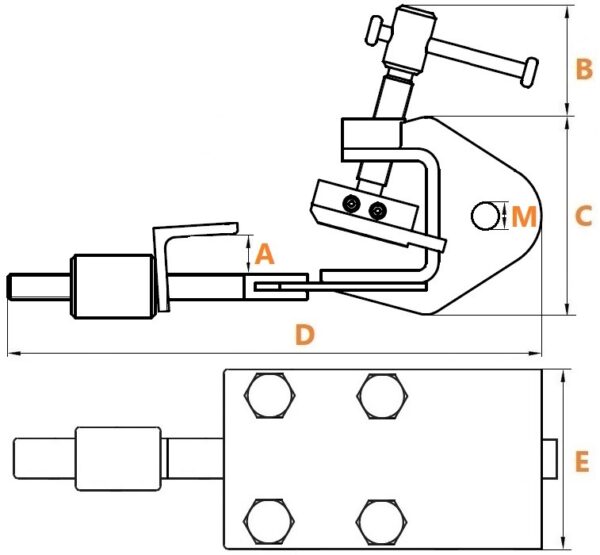

 Track profile A  S49
 Track profile A  S54
 Track profile A  S64
 Track profile A  UIC60
 Length B  66 mm
 Length C  86 mm
 Length D  145 mm
 Length E  50 mm
 Thread M  M10
 Wrench M  SW17
 Phase clamp coupling  Railway track
 Earth clamp coupling  Tommy bar
 Type  Earth connection
 Anti-rotation cable lug  X
 Detachable tommy bar  X
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 3 kg
