Railway Phase Screw Clamp with T Pin Shaft / 19.5 kA / 0.5 s / Ø 4 … 30 mm / Aluminum

Railway Phase Screw Clamp with T Pin Shaft / 19.5 kA / 0.5 s / Ø 4 … 30 mm / Aluminum

€265,06 (EXW)

1031036 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  19.5 kA
 Rated time  0.5 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2

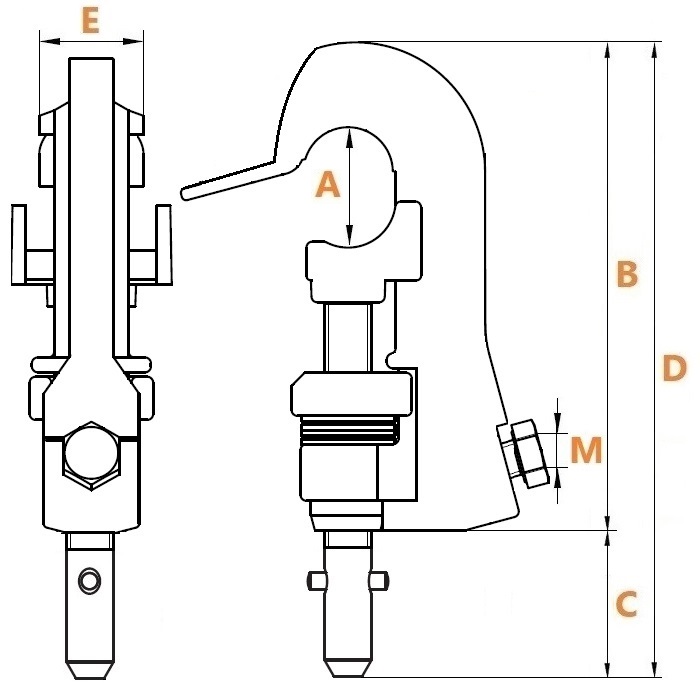

 Conductor diameter range A  4 … 30 mm
 Length B  164 mm
 Length C  156 mm
 Length D  320 mm
 Length E  35 mm
 Thread M  M12
 Wrench M  SW19
 Phase clamp coupling  Conductor
 Earth clamp coupling  T Pin
 Type  Phase connection
 Anti-rotation cable lug  X
 Material  Aluminum alloy
 Temperature  -25 …+55 °C
 Standard  DB 157 536
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 2 kg
