Porcelain Insulator / Long Rod Insulator / 123 kV / 120 kN / 2190 mm / 1270 mm

Porcelain Insulator / Long Rod Insulator / 123 kV / 120 kN / 2190 mm / 1270 mm

€299,90 (EXW)

Clear
2043041 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Czech Republic
 Nominal voltage  123 kV
 Dry lightning impulse withstand voltage  550 kV
 Wet power-frequency withstand voltage  230 kV
 Rated frequency  50 … 60 Hz
 Specified mechanical load  120 kN
 Creepage distance  2190 mm

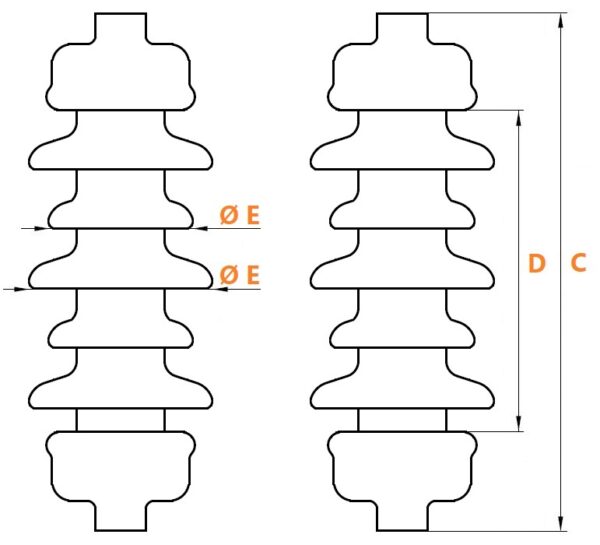

 Total length C  1270 mm
 Insulating length D  1088 mm
 Shed diameter E  120 mm
 Type  Long rod
 Pollution  X
 Material  Porcelain
 Altitude
  1400 m
 Temperature  -40 …+50 °C
 Colour  Brown
 Standard  C110
 Standard  C130
 Standard  EN 1562
 Standard  EN 1563
 Standard  EN 12 659
 Standard  EN 60 383-1
 Standard  IEC 60672-3

Additional information

Weight 1 kg
