Phase Screw Clamp with T Pin Shaft / 41 kA / 1 s / Ø 5 … 60 mm / Aluminum

Phase Screw Clamp with T Pin Shaft / 41 kA / 1 s / Ø 5 … 60 mm / Aluminum

€122,26 (EXW)

1031249 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Italy
 Rated short circuit current  41 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2
 Cable cross-section  120 mm2
 Cable cross-section  150 mm2

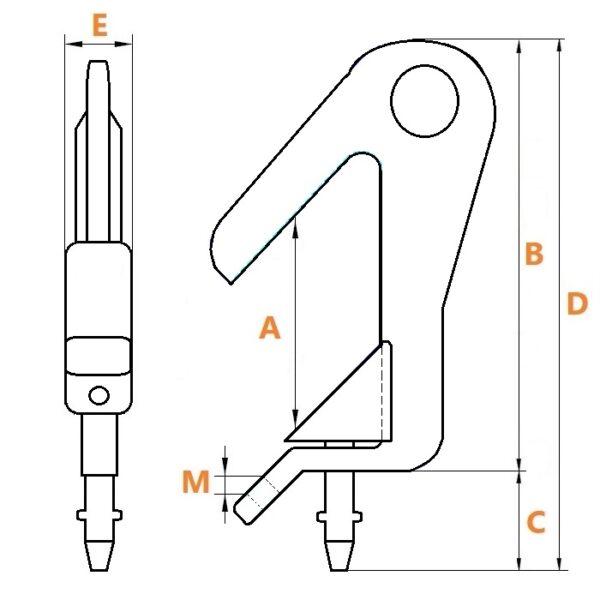

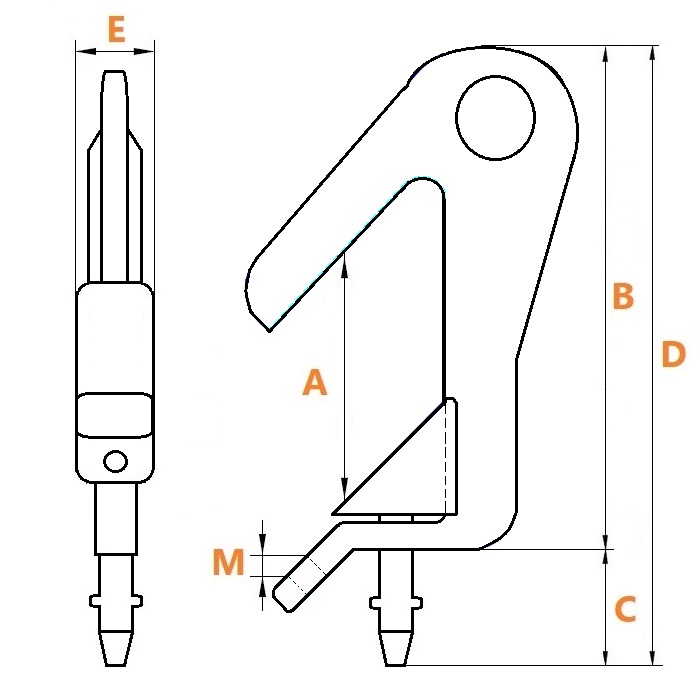

 Conductor diameter range A  5 … 60 mm
 Length B  295 mm
 Length C  55 mm
 Length D  350 mm
 Length E  47 mm
 Thread M  M10
 Wrench M  SW17
 Phase clamp coupling  Conductor
 Earth clamp coupling  T Pin
 Type  Phase connection
 Material  Aluminum alloy
 Temperature  -25 …+55 °C
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 3 kg
