Operating Stick with Handle / Insulating Stick with Handle / Multiuse Pole with Handle / 1 kV / 230 mm / Alternating Current / Direct Current

Operating Stick with Handle / Insulating Stick with Handle / Multiuse Pole with Handle / 1 kV / 230 mm / Alternating Current / Direct Current

€296,34 (EXW)

Clear
1027100 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Nominal voltage (AC)  1 kV
 Nominal voltage (DC)  1.5 kV

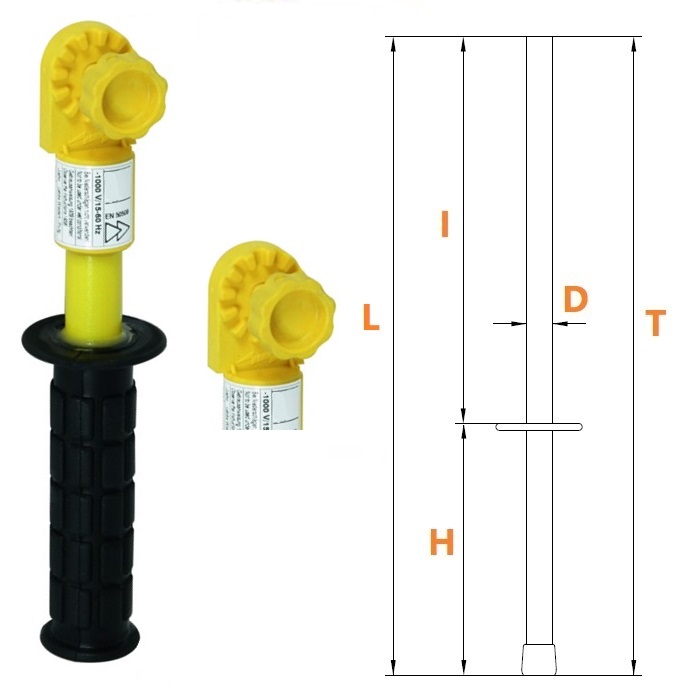

 Total length L
  230 mm
 Transport length T
  230 mm
 Handle length H  120 mm
 Insulating part length I  110 mm
 Diameter D
  50 mm
 Type  Insulating
 Alternating current
  X
 Direct current
  X
 Indoor use
  X
 Outdoor use
  X
 Dry weather conditions
  X
 Material  Glass-fibre reinforced polyester
 Temperature  -25 …+55 °C

Additional information

Weight 2 kg
