Operating Stick / Insulating Stick / Multiuse Pole / 27.5 kV / 4000 mm / Dismountable

Operating Stick / Insulating Stick / Multiuse Pole / 27.5 kV / 4000 mm / Dismountable

€1.017,14 (EXW)

Clear
1027126 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

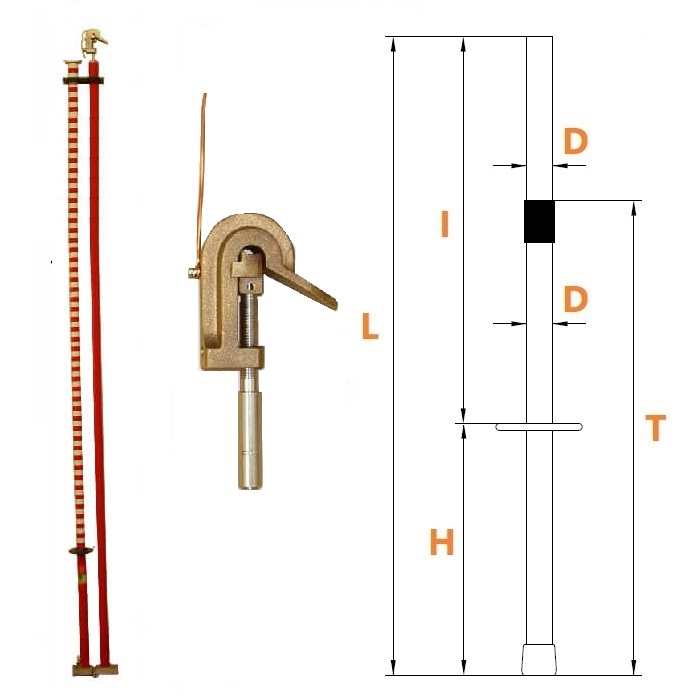

 Country of origin  Czech Republic
 Nominal voltage  27.5 kV
 Total length L  4000 mm
 Transport length T
  2000 mm
 Handle length H  1500 mm
 Insulating part length I  2500 mm
 Diameter D  39 mm
 Type  Railway
 Dismountable
  X
 Indoor use
  X
 Outdoor use
  X
 Dry weather conditions  X
 Material  Glass-fibre reinforced polyester
 Temperature  -25 …+55 °C
 Standard  ČSN EN 61230
 Standard  IEC 1230
 Standard  DIN 46235

Additional information

Weight 3 kg
