Operating Stick / Insulating Stick / Multiuse Pole / 220 kV / 3800 mm / Dismountable

Operating Stick / Insulating Stick / Multiuse Pole / 220 kV / 3800 mm / Dismountable

€685,30 (EXW)

Clear
1027164 Category: Tags: ,
Delivery time: 4 Week(s)

Loading...

Description

 Country of origin  Romania
 Nominal voltage  220 kV

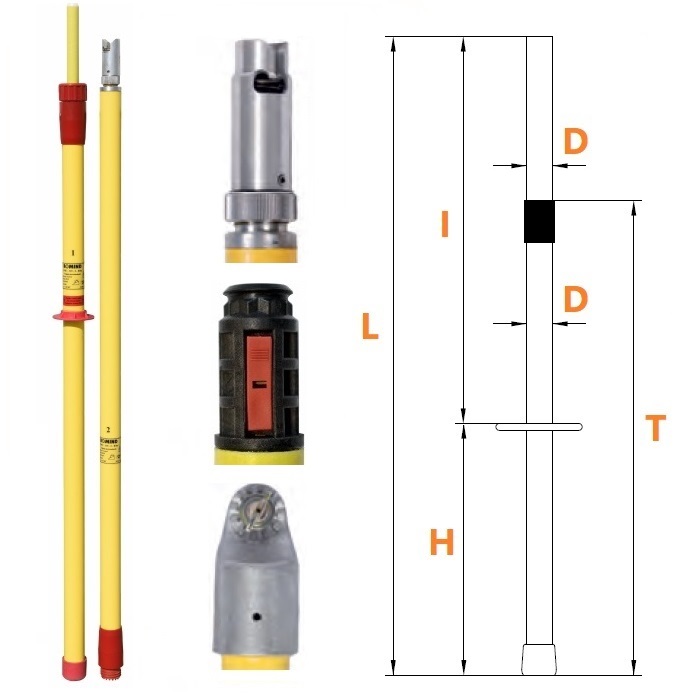

 Total length L  3800 mm
 Transport length T
  2100 mm
 Handle length H  1100 mm
 Insulating part length I  2680 mm
 Diameter D  42 mm
 Type  Insulating
 Dismountable
  X
 Indoor use
  X
 Outdoor use
  X
 Dry weather conditions  X
 Material  Glass-fibre reinforced polyester
 Temperature  -25 …+55 °C
 Standard  DIN VDE V 0681-1
 Standard  EN 61230
 Standard  EN 61235

Additional information

Weight 4 kg
