Non-Profile-Free Earthing and Short-Circuiting System for Railway / 50 mm² / 32 kA / 0.06 s / 5015 mm / Earthing Stick / Railway Phase Screw Clamp with T Pin Shaft / Railway Track Earthing Clamp with Tommy Bar / Copper

Non-Profile-Free Earthing and Short-Circuiting System for Railway / 50 mm² / 32 kA / 0.06 s / 5015 mm / Earthing Stick / Railway Phase Screw Clamp with T Pin Shaft / Railway Track Earthing Clamp with Tommy Bar / Copper

€1.805,90 – €3.299,90 (EXW)

Clear
1029001 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  32 kA
 Rated time  0.06 s
 Cable cross-section  50 mm2

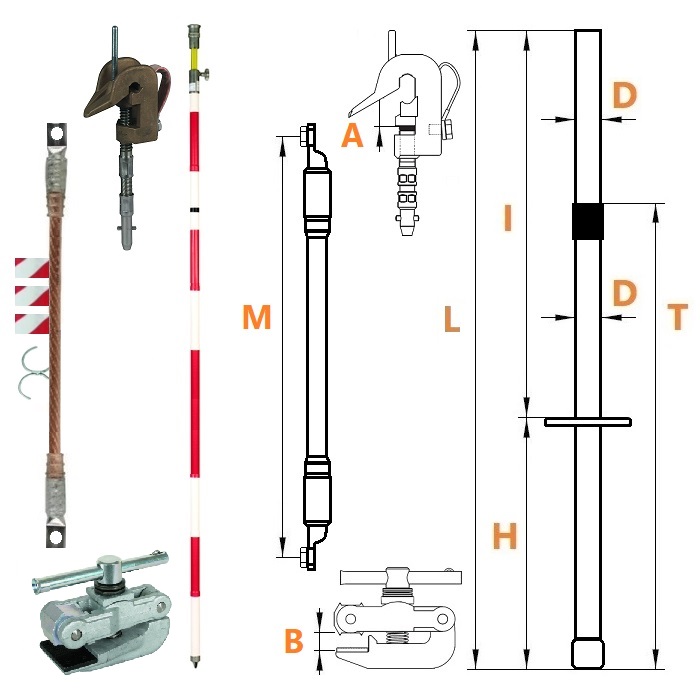

 Total length L  5015 mm
 Transport length T  2685 mm
 Handle length H  1900 mm
 Insulating length I  3115 mm
 Diameter D  26 mm
 Diameter D  36 mm
 Mechanical load  20 kg
 Phase clamp coupling  T Pin
 Earth clamp coupling  Tommy bar

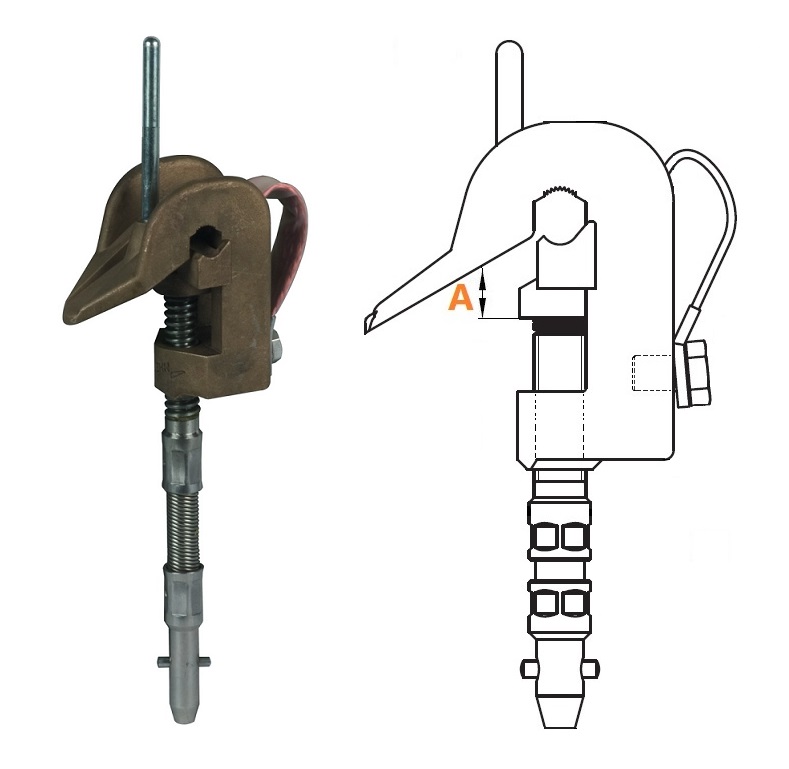

 Phase clamp type  1031032

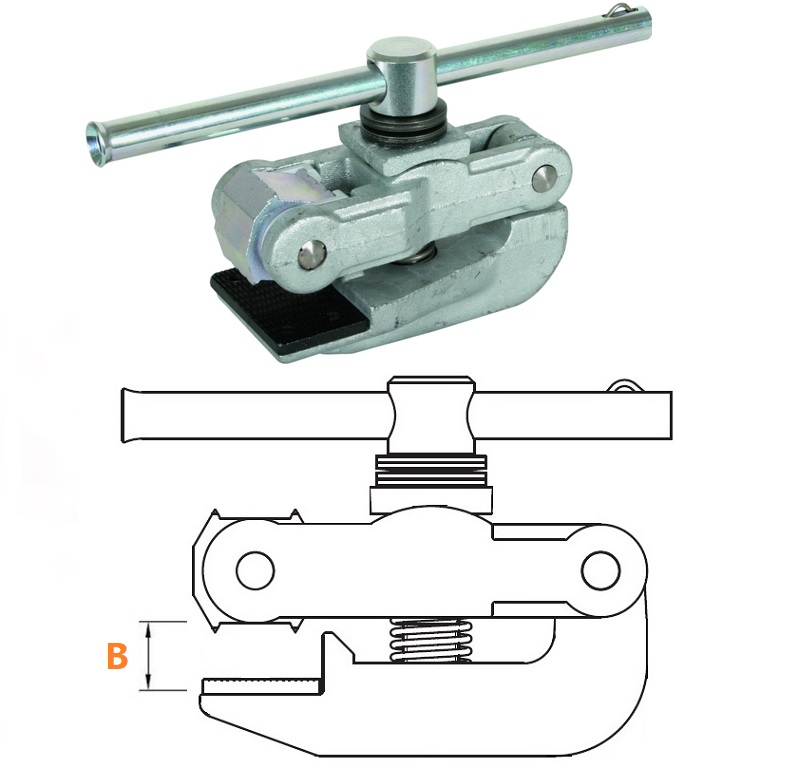

 Earth clamp type  1031042
 Non-profile-free  X
 Telescopic  X
 Indoor use  X
 Outdoor use  X
 Overmoulded  X
 Water-proof cable entries  X
 Plasticsheathed cable entries  X
 Anti-kink protection  X
 Material  Copper
 Material  Thermoplastic
 Temperature  -25 …+55 °C
 Standard  DIN VDE 0683-100
 Standard  IEC 61138
 Standard  IEC 61230

Additional information

Weight 2 kg
