Medium Voltage Cable Termination / Three-Core Outdoor Cable Termination / 12 kV / 50 … 240 mm² / 460 mm / 330 mm

Medium Voltage Cable Termination / Three-Core Outdoor Cable Termination / 12 kV / 50 … 240 mm² / 460 mm / 330 mm

€549,90 (EXW)

Clear
2035013 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Germany
 Nominal voltage  12 kV
 Rated frequency  50 … 60 Hz
 Creepage distance  460 mm

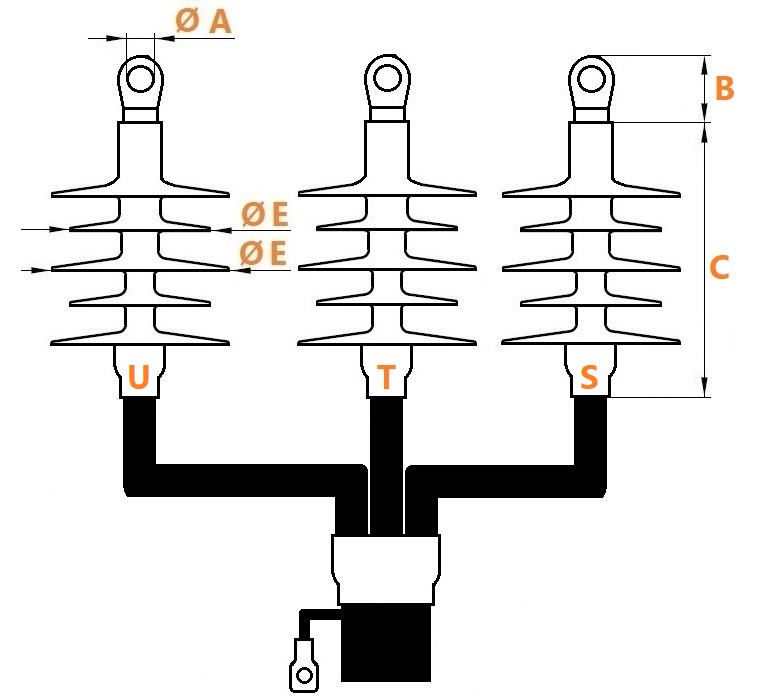

 Diameter A  13 mm
 Length B  105 mm
 Insulating length C  225 mm
 Shed diameter E  110 mm
 Cable termination number  3
 Three-core cable break out number  1
 Type  Three-core
 Screw cable lug for conductor connection  X
 Sealing tube  X
 Insulating body  X
 Stress control element  X
 Outer semi-conductive layer  X
 Sealing tape  X
 Tape clamp  X
 Screen earthing wires  X
 Cable lug for earthing connection  X
 Indoor  X
 Outdoor  X
 Cold shrink  X
 Material
  Silicone rubber
 Altitude
  1400 m
 Temperature  -25 …+55 °C
 Colour  Red
 Standard  CENELEC HD 629.1
 Standard  ISO 9001:2015
 Standard  ISO 14001:2015
 Standard  ISO 45001:2018
 Standard  DIN VDE 0278-5
 Standard  DIN VDE 0278-629-1
 Standard  IEC 50602-4

Additional information

Weight 1 kg
