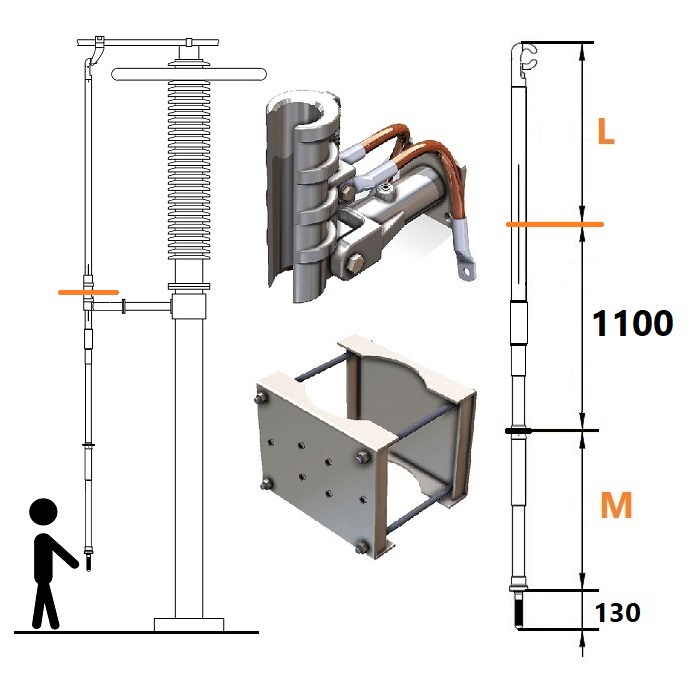

Lance Earthing Device / Earthing and Short-Circuiting Lance Device / Portable Earthing Lance Device / 420 kV / 63 kA / 0.5 s

Lance Earthing Device / Earthing and Short-Circuiting Lance Device / Portable Earthing Lance Device / 420 kV / 63 kA / 0.5 s

€1.523,90 – €3.024,90 (EXW)

Clear
1025001 Category:
Delivery time: 4 Week(s)

Loading...

Description

 Country of origin  Italy
 Nominal voltage  420 kV
 Rated short circuit current  63 kA
 Rated time  0.5 s
 Rated frequency  50 … 60 Hz
 Phase connection diameter
  30 mm
 Type
  Lance
 Earth fixed point  1031159
 Earth fixed point mounting
  1031031
 Dismountable insulating stick
  1031233
 Signal flag
  1015027
 Option  1031155
 Option  1031156
 Option  1031157
 Option  1031158
 Wooden box  X
 Material  Aluminium
 Material  Stainless steel
 Temperature  -25 …+55 °C
 Standard  CEI EN 61219
 Standard  CEI EN 61235

Additional information

Weight 4 kg
