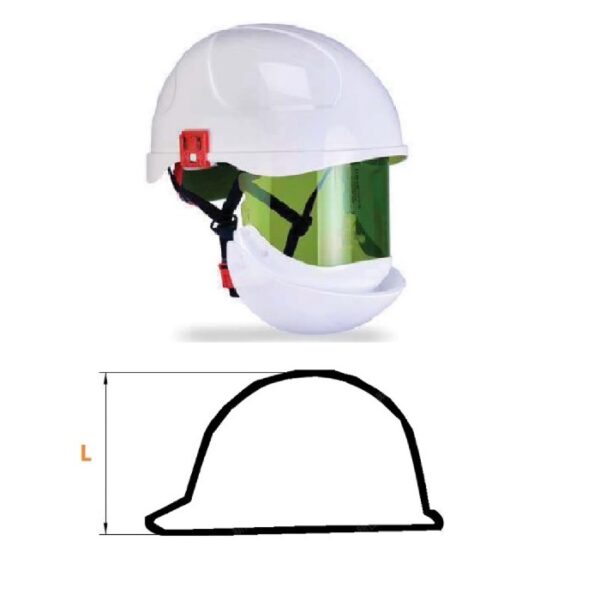

Insulating Helmet / Dielectric Helmet / Electrical Safety Helmet / 1 kV (AC) / 1.5 kV (DC) / Class 2

Insulating Helmet / Dielectric Helmet / Electrical Safety Helmet / 1 kV (AC) / 1.5 kV (DC) / Class 2

€684,90 (EXW)

1012023 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Spain
 Alternating voltage (AC)
  1 kV
 Direct voltage (DC)
  1.5 kV
 Class  2
 ATPV Helmet  25 cal/cm²
 ATPV Visor  36 cal/cm²
 Length L  200 mm
 Type  Insulating
 Electric insulation  X
 UV protection
  X
 Anti-fog protection
  X
 Protection against liquid splashes
  X
 Protection against molten metal   X
 Protection against hot solids  X
 Adjustable size
  X
 Colour  White
 Material  Acrylnitril
 Material  Polycarbonate
 Temperature  -40 …+70°C
 Standard  ASTM F2178
 Standard  GS-ET-29
 Standard  EN 166
 Standard  EN 397
 Standard  EN 50365

Additional information

Weight 2 kg
