Insulated Rescue Hook / Electrical Safety Rescue Hook / Insulating Rescue Stick / 66 kV / 2300 mm

Insulated Rescue Hook / Electrical Safety Rescue Hook / Insulating Rescue Stick / 66 kV / 2300 mm

€209,90 (EXW)

Clear
1018002 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Spain

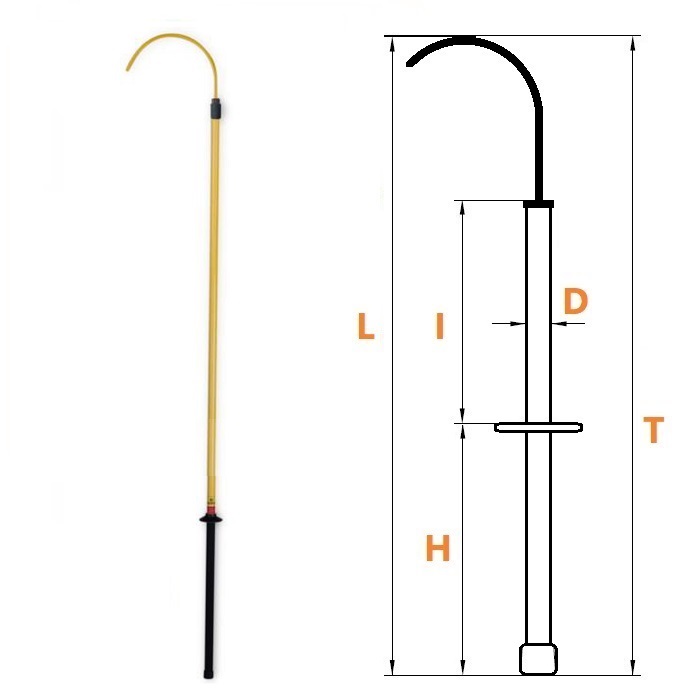

 Nominal voltage  66 kV
 Total length L  2300 mm
 Transport length T  2300 mm
 Handle length H  500 mm
 Insulating part length I  1500 mm
 Diameter D  32 mm
 Type  Fixed
 Indoor use  X
 Outdoor use  X
 Handguard  X
 Material  Glass-fibre polyester
 Temperature  -25 …+55 °C
 Standard  UNE-EN 50508

Additional information

Weight 1 kg
