Safety & Power
Insulated Rescue Hook / Electrical Safety Rescue Hook / Insulating Rescue Stick / 35 kV / 1900 mm

Insulated Rescue Hook / Electrical Safety Rescue Hook / Insulating Rescue Stick / 35 kV / 1900 mm

€249,90 (EXW)

Clear
1018025 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Romania
 Nominal voltage  35 kV

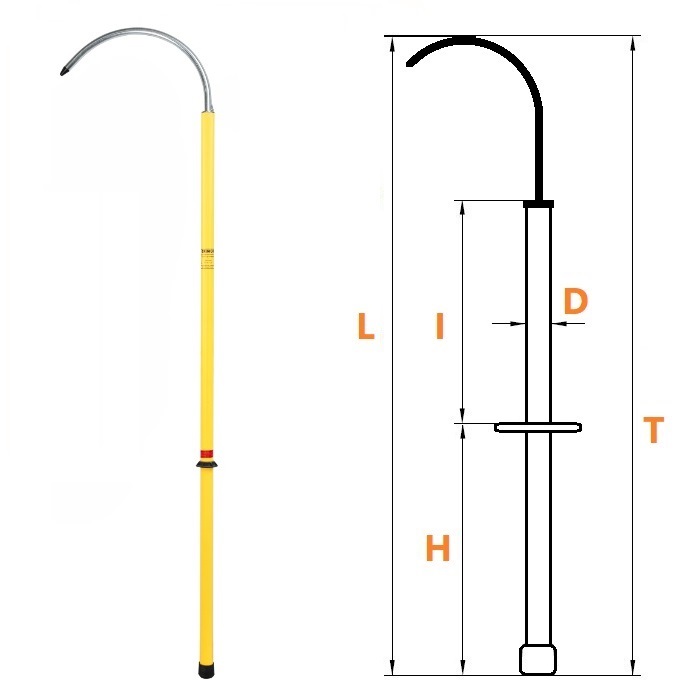

 Total length L  1900 mm
 Transport length T  1900 mm
 Handle length H  600 mm
 Insulating part length I  1000 mm
 Diameter D  38 mm
 Type  Fixed
 Indoor use  X
 Outdoor use  X
 Handguard  X
 Material  Glass-fibre polyester
 Temperature  -25 …+55 °C
 Standard  EN 61230
 Standard  EN 61235

Additional information

Weight 2 kg
