High Voltage Power Line Fitting / Full-Tension Compression Clamp for Aluminium Conductor Steel Reinforced / 500 kV / 410 mm

High Voltage Power Line Fitting / Full-Tension Compression Clamp for Aluminium Conductor Steel Reinforced / 500 kV / 410 mm

€1,00 (EXW)

Clear
2111041 Category: Tags: ,
Delivery time: 14 Week(s)

Loading...

Description

 Country of origin  Poland
 Nominal voltage  500 kV
 Rated frequency  50 … 60 Hz

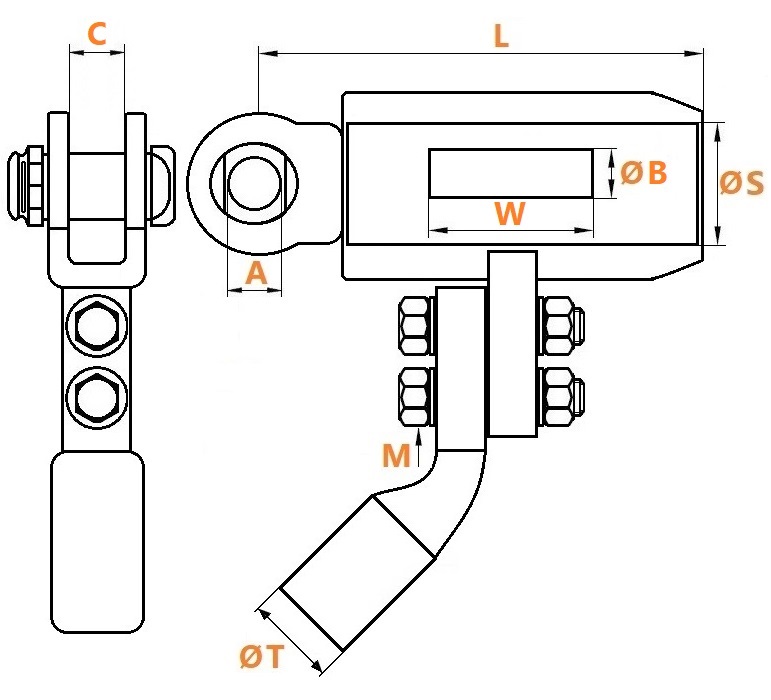

 Diameter A  52 mm
 Diameter B  14 mm
 Width C  19 mm
 Length L  600 mm
 Length W  100 mm
 Thread M  M12
 Wrench M  SW19
 Tightening torque  35 Nm
 Type  Compression clamp
 Full-tension  X
 Aluminium conductor steel reinforced  X
 Hot dip galvanized  X
 Material  Steel
 Material  Aluminium alloy
 Temperature  -25 …+80 °C
 Standard  IEC 61284
 Standard  IEC 61897

Additional information

Weight 14 kg
