Fuse Tong / Insulating Fuse Tong / Multiuse Fuse Tong / 38.5 kV / 1540 mm

Fuse Tong / Insulating Fuse Tong / Multiuse Fuse Tong / 38.5 kV / 1540 mm

€369,78 (EXW)

Clear
1027077 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Czech Republic
 Nominal voltage  38.5 kV

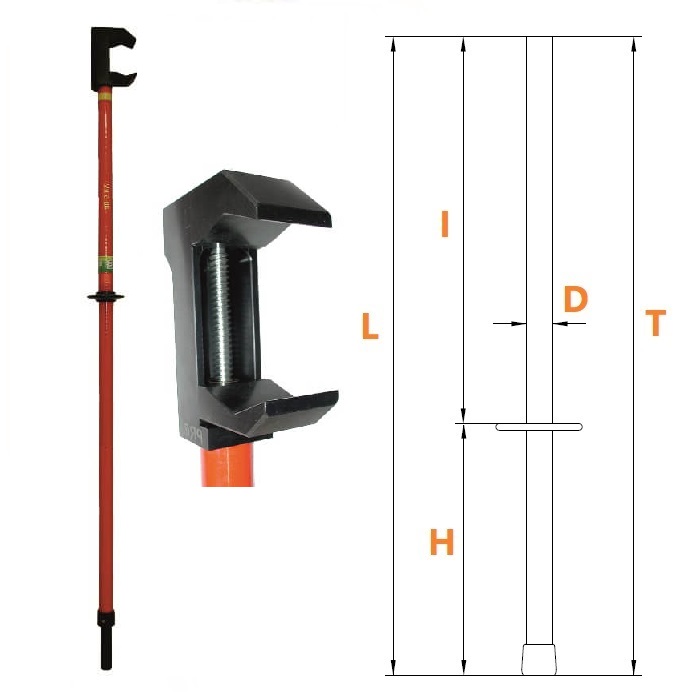

 Total length L
  1540 mm
 Transport length T
  1540 mm
 Handle length H  760 mm
 Insulating part length I  780 mm
 Diameter D  39 mm
 Type  Fuse
 Indoor use
  X
 Outdoor use
  X
 Dry weather conditions
  X
 Material  Glass-fibre reinforced  polyester
 Material  Polyamide
 Temperature  -25 …+55 °C
 Standard  ČSN 35 9701
 Standard  IEC 832

Additional information

Weight 2 kg
