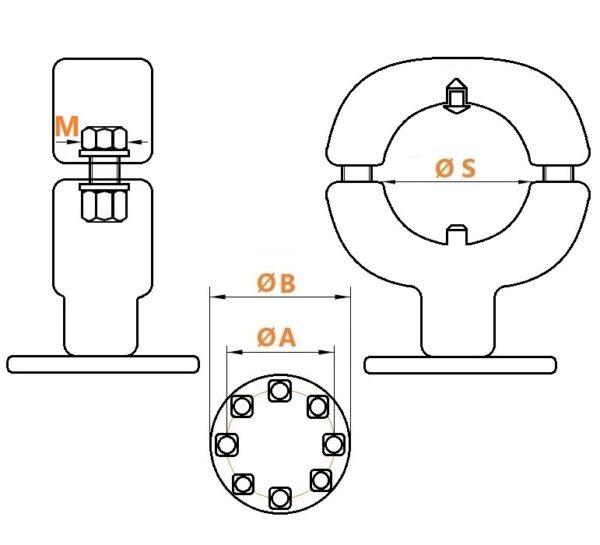

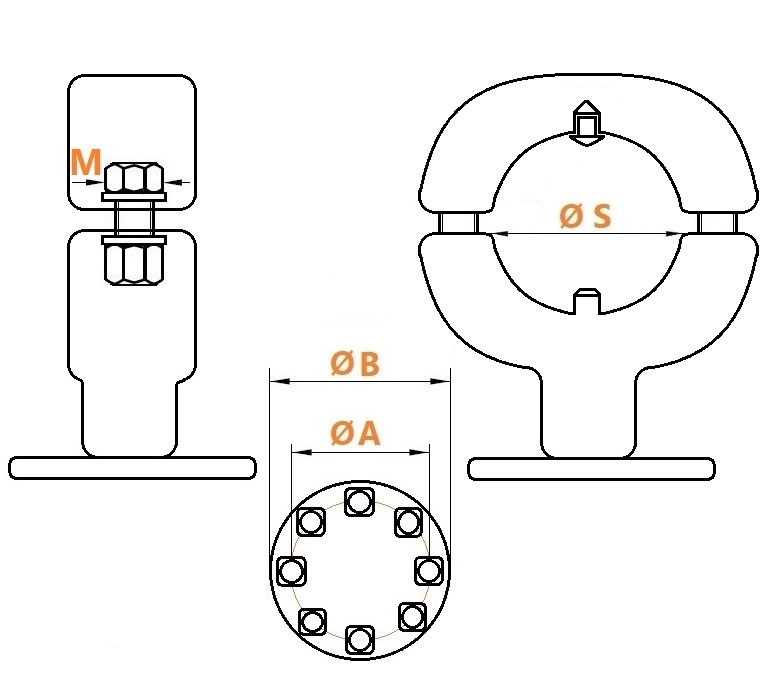

Fixed Substation Tubular Busbar Support with Potential Equalisation / 245 kV / 50 kA / 1 s / Aluminium

Fixed Substation Tubular Busbar Support with Potential Equalisation / 245 kV / 50 kA / 1 s / Aluminium

€189,90 – €419,90 (EXW)

Clear
2036995 Category: Tags: ,
Delivery time: 14 Week(s)

Loading...

Description

 Country of origin  Austria
 Nominal voltage  245 kV
 Rated short circuit current  50 kA
 Rated time  1 s
 Rated frequency  50 … 60 Hz
 Thread M  M12
 Wrench M  SW19
 Tightening torque  75 Nm
 Type  Fixed
 Potential equalisation  X
 Self-locking nut  X
 Material
  Aluminum alloy
 Temperature  -25 …+55 °C
 Standard  VDE 210
 Standard  DIN 46206/2
 Standard  DIN 46206/3
 Standard  DIN 48201/6
 Standard  EN 1706: 2020-06
 Standard  EN 50341-2-1:2020-08-01
 Standard  IEC 61284:1997

Additional information

Weight 14 kg
