Safety & Power
Electronic Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 3 … 10 kV / 405 mm / Alternating Current / Visual Indication / Audible Indication

Electronic Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 3 … 10 kV / 405 mm / Alternating Current / Visual Indication / Audible Indication

€679,86 (EXW)

Clear
1021002 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Spain
 Nominal voltage range  3 … 10 kV
 Rated frequency range  50 … 60 Hz

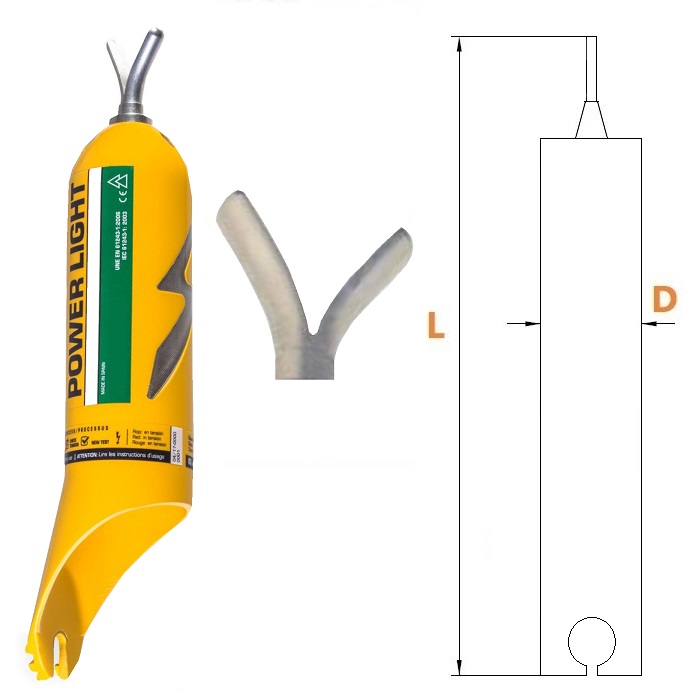

 Total length L
  405 mm
 Diameter D  60 mm
 Phase clamp coupling  V-Shaped electrode
 Earth clamp coupling  Universal
 Type  Electronic
 Alternating current (AC)  X
 Visual indication  X
 Audible indication  X
 Self-test  X
 Lamp  X
 Battery  X
 Case  X
 Indoor use  X
 Outdoor use  X
 Auto-start-up with voltage presence  X
 Material  Polycarbonate
 Temperature  -25 …+55 °C
 Standard  IEC 61243
 Standard  UNE-EN 61243-1

Additional information

Weight 2 kg
