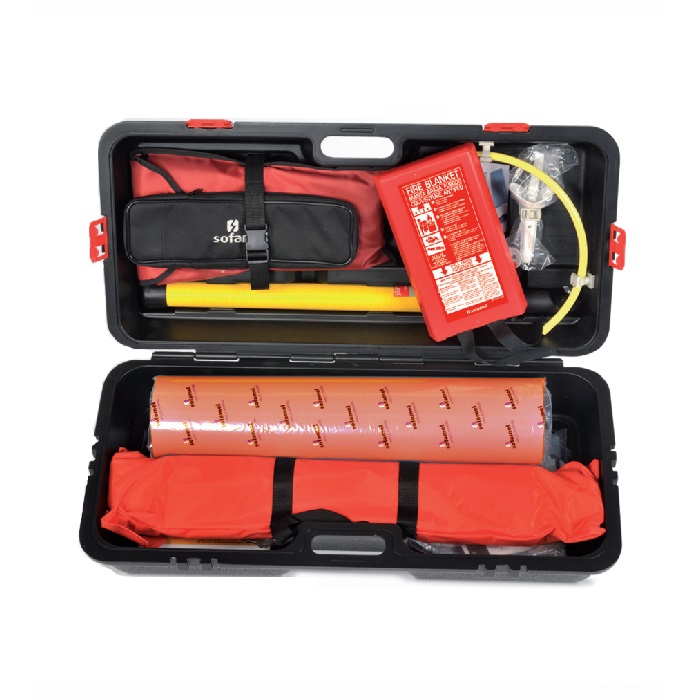

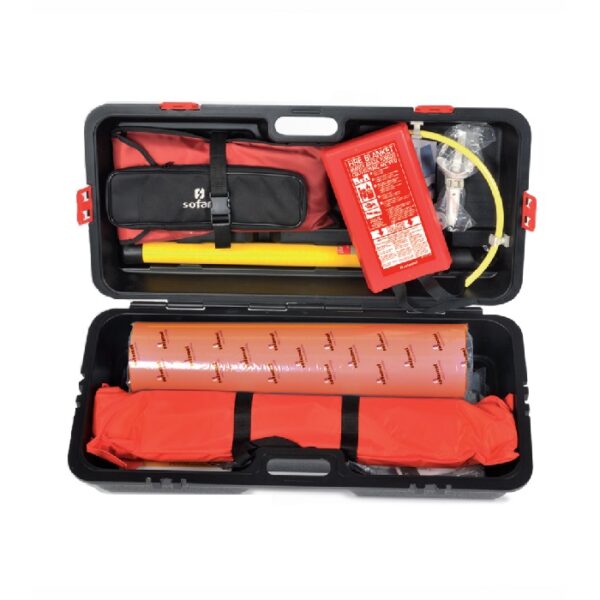

Electrical Compact Portable Rescue Kit for Hybrid and Electric Vehicle / 1 kV / Class 0

Electrical Compact Portable Rescue Kit for Hybrid and Electric Vehicle / 1 kV / Class 0

€1.699,90 (EXW)

Clear
1019034 Category:
Delivery time: 4 Week(s)

Loading...

Description

 Country of origin  Spain
 Multimeter nominal voltage range  0.06 … 1 kV
 Insulating work gloves nominal voltage  1 kV
 Insulating mat nominal voltage  1 kV
 Operating stick nominal voltage  1 kV
 Insulating work gloves class  0
 Insulating mat class  0
 Insulating work gloves length  360 mm
 Insulating mat width  600 mm
 Insulating mat length  1000 mm
 Fire resistant blanket width  1200 mm
 Fire resistant blanket length  1800 mm
 Operating stick length  1500 mm
 Type  Transportable
 Rescue hook  X
 Respiration pipette  X
 Stretcher  X
 Neck immobilizer  X
 Voltage detector bag  X
 Material  Plastic
 Temperature  -25 …+55 °C
 Standard  EN 60903
 Standard  EN 61010-1
 Standard  EN 61010-2-033
 Standard  EN 61326
 Standard  IEC 60855
 Standard  IEC 60903
 Standard  IEC 61111

Additional information

Weight 4 kg
