Earthing Device / Discharge Device / 2050 mm / 16 mm² / Earthing Stick with Contact Electrode / Earth Plier / Copper

Earthing Device / Discharge Device / 2050 mm / 16 mm² / Earthing Stick with Contact Electrode / Earth Plier / Copper

€601,90 – €3.170,90 (EXW)

Clear
1028002 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Discharge current
  50 kA

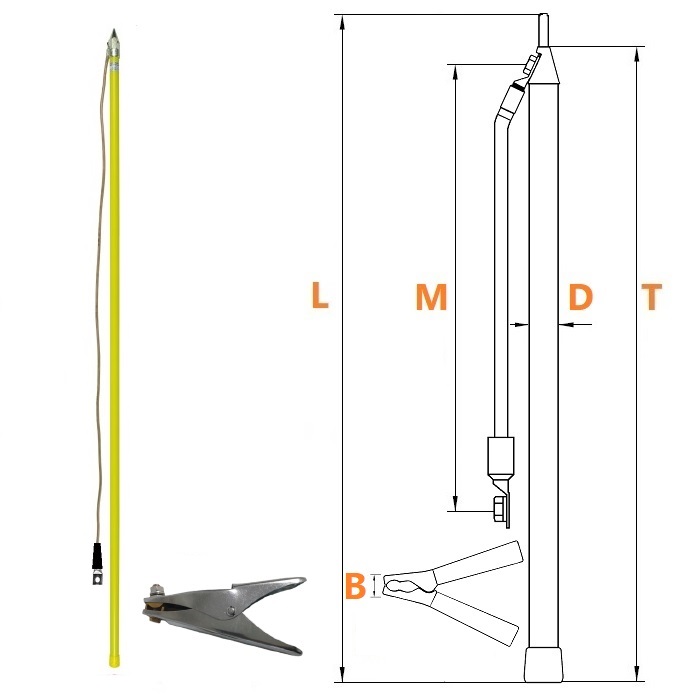

 Total length L
  2050 mm
 Transport length T
  2050 mm
 Diameter D
  30 mm
 Cable cross-section  16 mm2
 Phase clamp coupling  Stick
 Earth clamp coupling  Earth plier
 Phase clamp type  Pin-shaped electrode
 Earth clamp type  Earth plier
 Overmoulded  X
 Water-proof cable entries  X
 Plasticsheathed cable entries  X
 Anti-kink protection  X
 Indoor use
  X
 Outdoor use
  X
 Dry weather conditions
  X
 Material  Copper
 Material  Thermoplastic
 Material  Glass-fibre reinforced polyester
 Temperature  -25 …+55 °C

Additional information

Weight 2 kg
