Earth Clamp with Tommy Bar / 29.6 kA / 1 s / Ø 16 … 22 mm / Copper

Earth Clamp with Tommy Bar / 29.6 kA / 1 s / Ø 16 … 22 mm / Copper

€122,26 (EXW)

1031062 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  29.6 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2
 Cable cross-section  120 mm2
 Cable cross-section  150 mm2

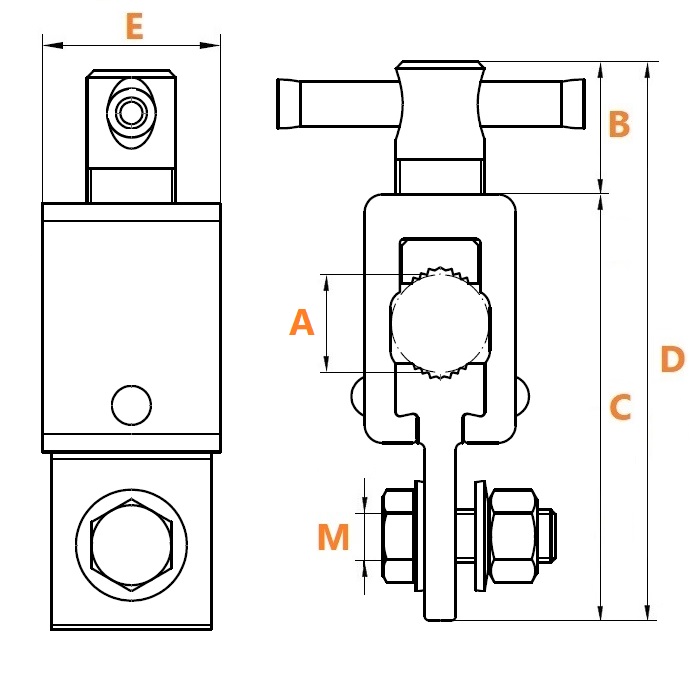

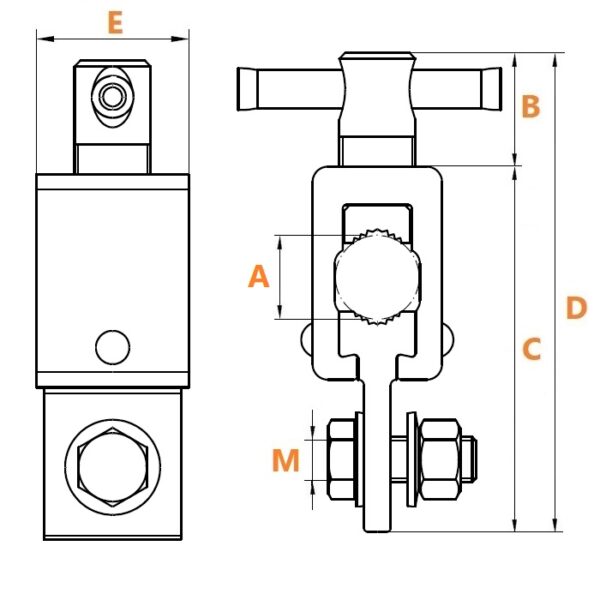

 Conductor diameter range A  16 … 22 mm
 Length B  94 mm
 Length C  30 mm
 Length D  124 mm
 Length E  40 mm
 Thread M  M12
 Wrench M  SW19
 Phase clamp coupling  Conductor
 Earth clamp coupling  Tommy bar
 Type  Earth connection
 Anti-rotation cable lug  X
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  DIN VDE 0683-100
 Standard  EN 61230
 Standard  IEC 61230
