Earth Clamp with Tommy Bar / 18.7 kA / 1 s / 2 … 30 mm / Copper

Earth Clamp with Tommy Bar / 18.7 kA / 1 s / 2 … 30 mm / Copper

€156,26 (EXW)

1031061 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  18.7 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2

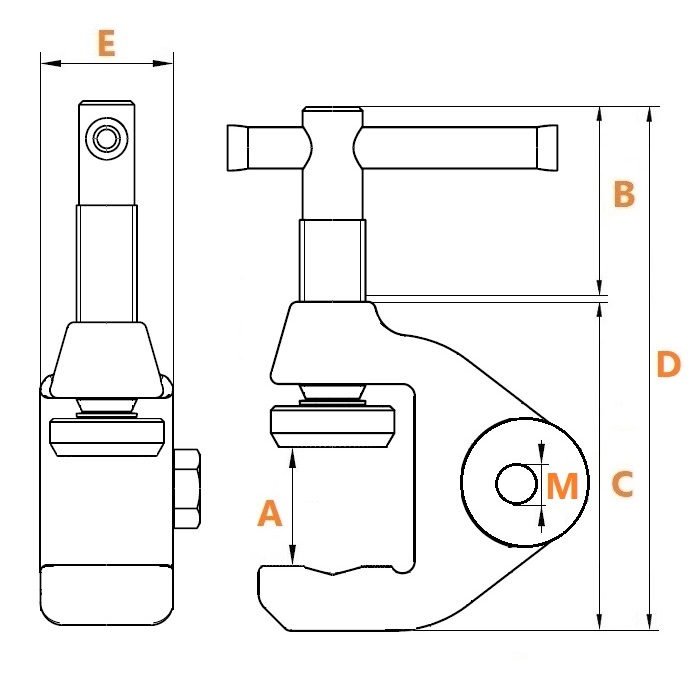

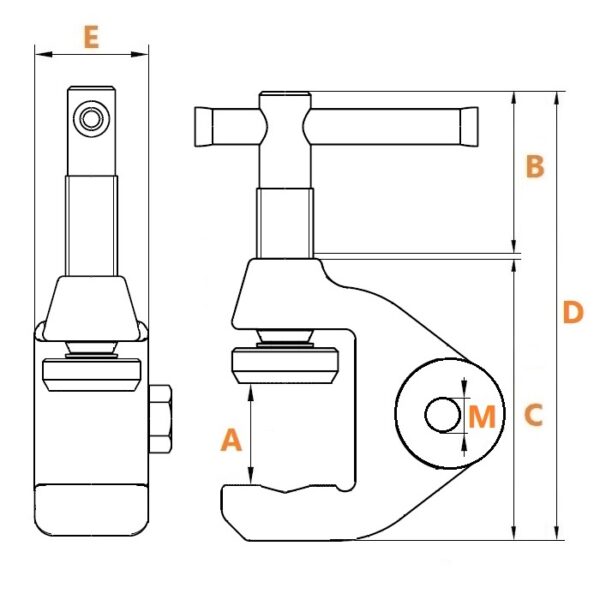

 Clamping range A  2 … 30 mm
 Conductor diameter range A  2 … 30 mm
 Length B  73 mm
 Length C  72 mm
 Length D  145 mm
 Length E  35 mm
 Thread M  M12
 Wrench M  SW19
 Phase clamp coupling  Universal
 Earth clamp coupling  Tommy bar
 Type  Earth connection
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 3 kg
