Earth Bushing with Wing Bolt / 29.6 kA / 1 s / Ø 16 mm / Copper

Earth Bushing with Wing Bolt / 29.6 kA / 1 s / Ø 16 mm / Copper

€95,06 (EXW)

1031236 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  29.6 kA
 Rated time  1 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2
 Cable cross-section  95 mm2
 Cable cross-section  120 mm2
 Cable cross-section  150 mm2

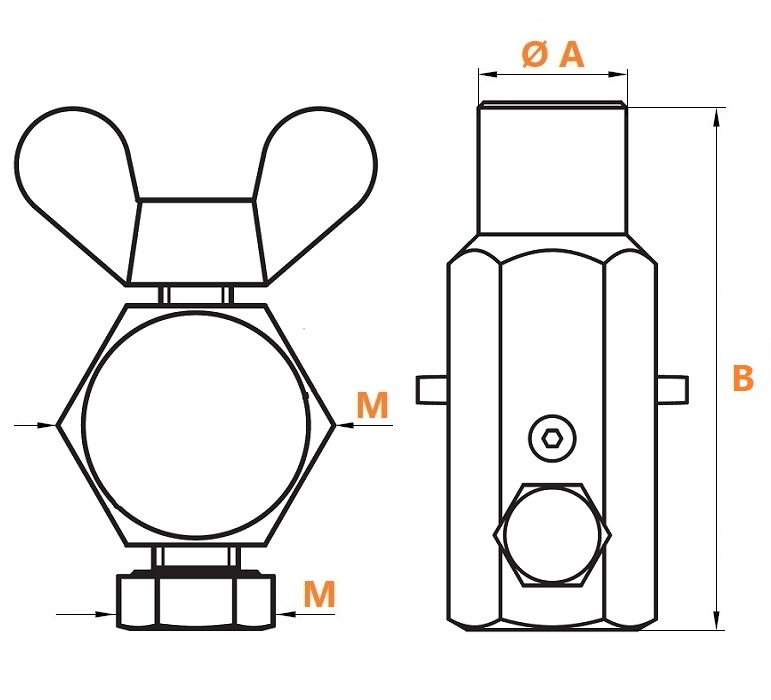

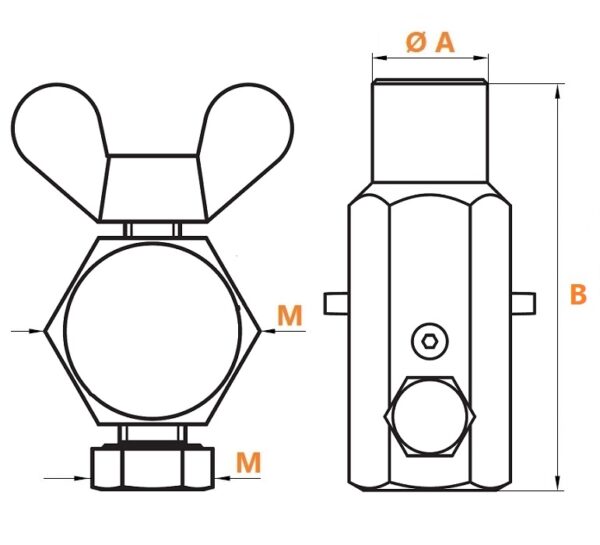

 Fixed ball point diameter A  16 mm
 Length B  100 mm
 Thread M  M12
 Wrench M  SW19
 Wrench M  SW34
 Phase clamp coupling  Ball head
 Earth clamp coupling  Wing bolt
 Type  Earth connection
 Anti-rotation cable lug  X
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  DIN VDE 0683-100
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 2 kg
