Distance Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 220 kV / 2900 mm / Alternating Current / Visual Indication / Audible Indication

Distance Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 220 kV / 2900 mm / Alternating Current / Visual Indication / Audible Indication

€1.087,86 (EXW)

Clear
1021193 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Italy
 Nominal voltage  220 kV
 Rated frequency range  50 … 60 Hz

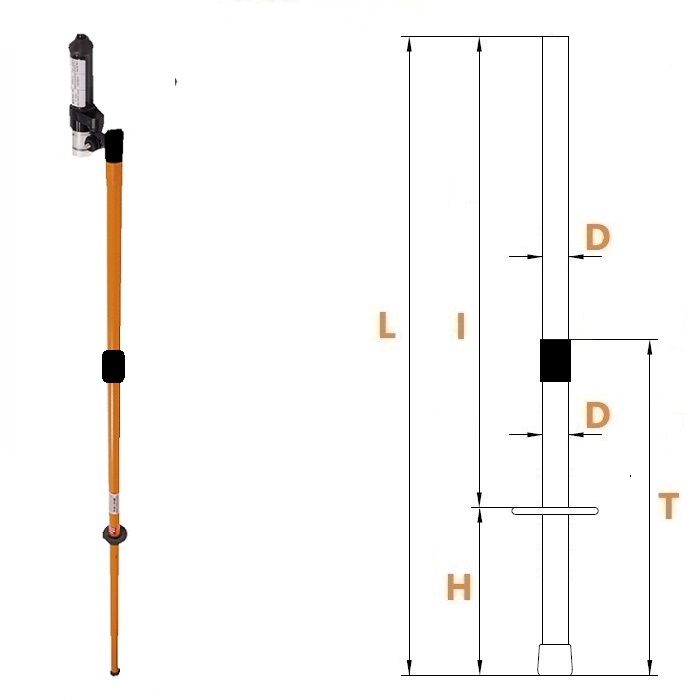

 Total length L
  2900 mm
 Diameter D  40 mm
 Phase clamp coupling  No contact
 Earth clamp coupling  Handle
 Type  Distance
 Alternating current (AC)  X
 Visual indication  X
 Audible indication  X
 Self-test  X
 Lamp  X
 Battery  X
 Case  X
 Bag  X
 Outdoor use  X
 Material  Polycarbonate
 Temperature  -25 …+55 °C
 Standard  IEC 60855

Additional information

Weight 3 kg
