Safety & Power

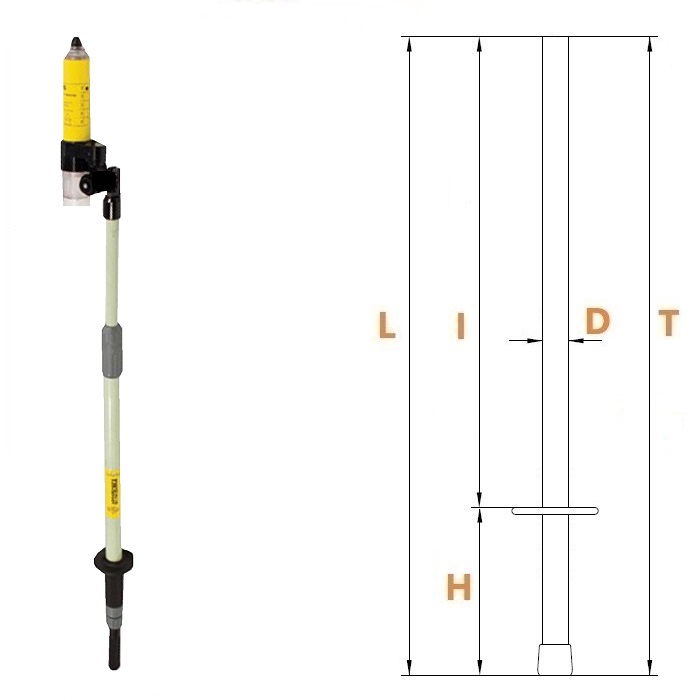

Distance Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 200 … 600 kV / 1400 mm / Direct Current / Visual Indication / Audible Indication

Distance Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 200 … 600 kV / 1400 mm / Direct Current / Visual Indication / Audible Indication

€951,86 (EXW)

Clear
1021190 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Italy
 Nominal voltage range  200 … 600 kV
 Total length L
  1400 mm
 Diameter D  40 mm
 Phase clamp coupling  No contact
 Earth clamp coupling  Handle
 Type  Distance
 Direct current (DC)  X
 Visual indication  X
 Audible indication  X
 Lamp  X
 Battery  X
 Case  X
 Bag  X
 Outdoor use  X
 Material  Polycarbonate
 Temperature  -25 …+55 °C

Additional information

Weight 3 kg
