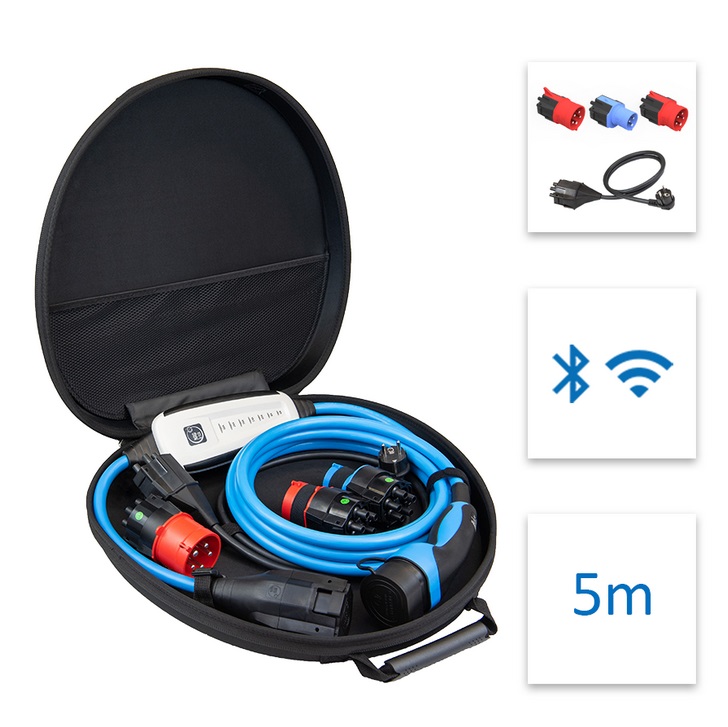

Charging Cable Set / 22 kW / 400 V / 32 A / 5000 mm / 5 Pol / Type 2 / Mode 3 / Three-phase / Blue / 4 kg / Plastic

Charging Cable Set / 22 kW / 400 V / 32 A / 5000 mm / 5 Pol / Type 2 / Mode 3 / Three-phase / Blue / 4 kg / Plastic

€1.539,90 (EXW)

401001 Category: Tags: ,
Delivery time: 10 Week(s)

Loading...

Description

 Country of origin  Austria
 Power  up to 22 kW
 Voltage  400 V
 Current
  up to 32 A
 Length
  5000 mm
 Degree of protection
  IP 67

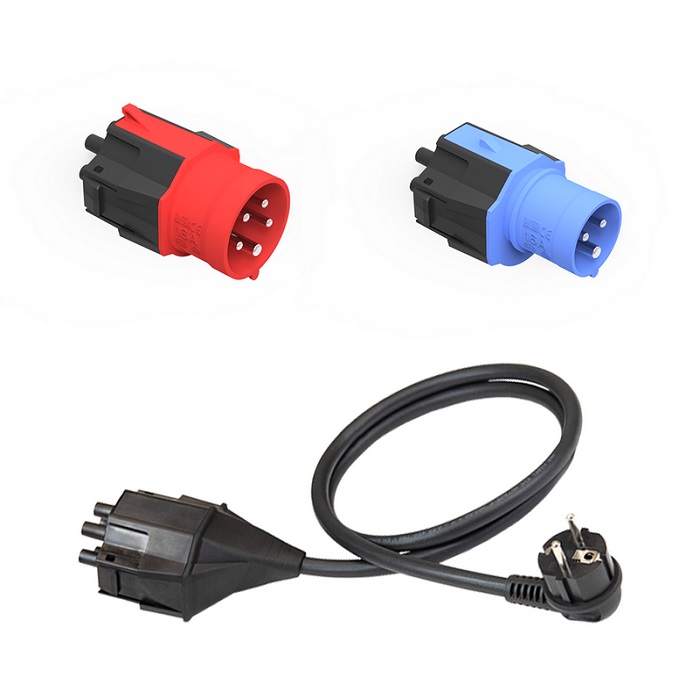

 Infrastructure plug
  5 Pol (32 A)
 Infrastructure plug
  5 Pol (16 A)
 Infrastructure plug
  3 Pol (16 A)
 Infrastructure plug
  E + F – Schuko EU (13 A)
 Vehicle plug
  Type 2
 Mode
  3
 Type  Three-phase
 Blackout protection  X
 Overheating protection  X
 Temperature monitoring
  X
 Over voltage protection
  X
 Under voltage protection
  X
 WLAN
  X
 Bluetooth
  X
 App
  X
 Incorrect connection check
  X
 Pull-off detection with arc protection
  X
 Automatic load reports
  X
 Bag
  X
 Colour  Blue
 Weight
  4 kg
 Material
  Plastic
 Temperature
   -40… +70°C
 Standard  IEC 62196-2

Additional information

Weight 10 kg
