Safety & Power
Cable Connector / Press Connector with Pin / 1 kV / 16 mm² / Ø 5 mm / Ø 9 mm / 58 mm / Aluminium / Copper

Cable Connector / Press Connector with Pin / 1 kV / 16 mm² / Ø 5 mm / Ø 9 mm / 58 mm / Aluminium / Copper

€12,21 (EXW)

Clear
2032122 Category: Tags: ,
Delivery time: 4 Week(s)

Loading...

Description

 Country of origin  Poland
 Nominal voltage  1 kV
 Rated frequency  50 … 60 Hz

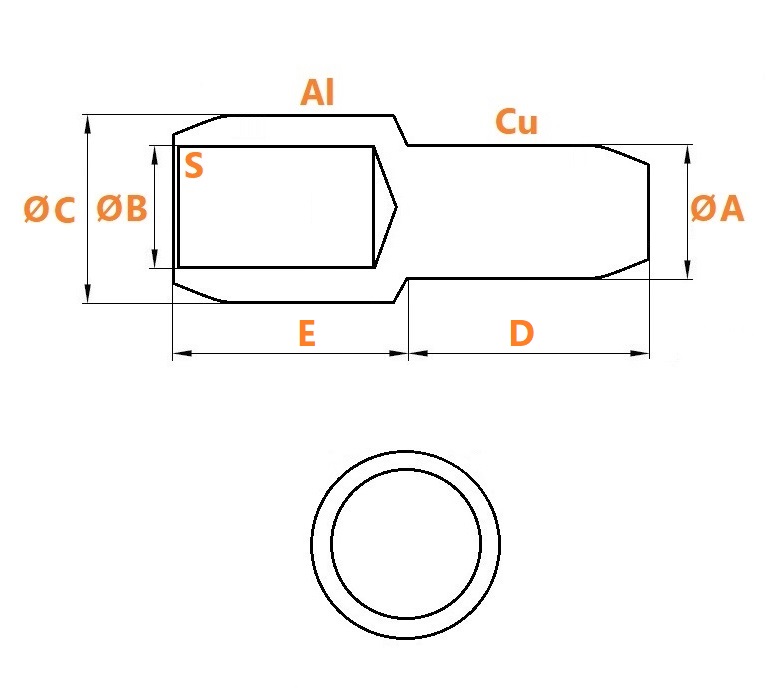

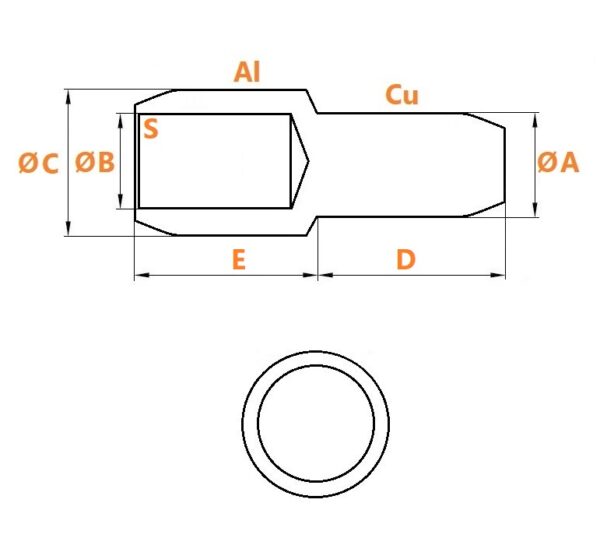

 Diameter A  5 mm
 Diameter B  5.6 mm
 Diameter C  9 mm
 Length D  18 mm
 Length E  40 mm
 Type  Press
 Type  Pin
 Separation wall  X
 Material  Aluminium alloy
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  DIN 46267-2
 Standard  IEC 61238-1

Additional information

Weight 4 kg
