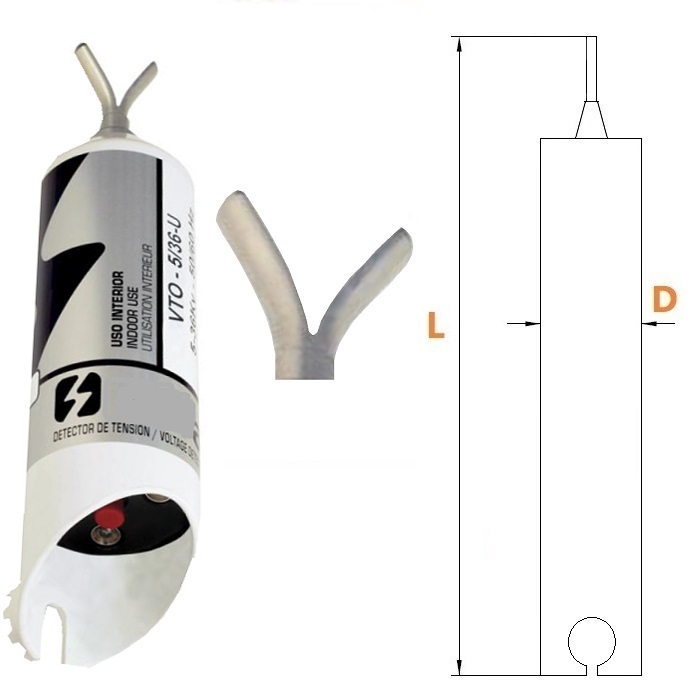

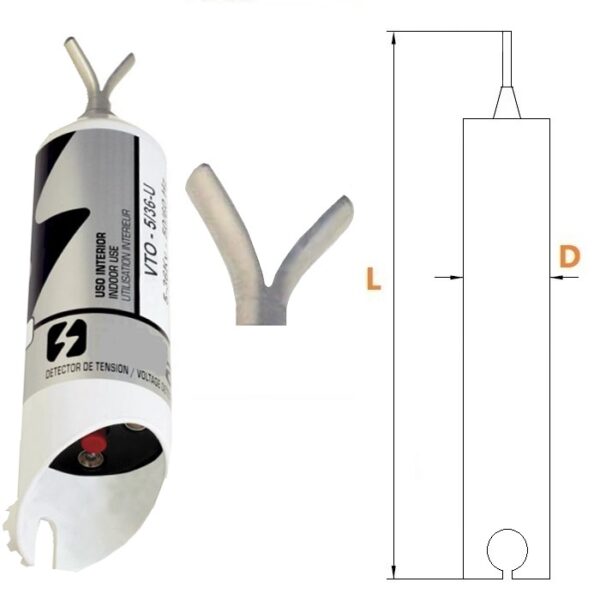

Analogic Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 5 … 66 kV / 450 mm / Alternating Current / Visual Indication

Analogic Capacitive Voltage Detector / Switchgear Voltage Detector / Overhead Lines Voltage Detector / 5 … 66 kV / 450 mm / Alternating Current / Visual Indication

€339,86 (EXW)

Clear
1021021 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Spain
 Nominal voltage range  5 … 66 kV
 Rated frequency range  50 … 60 Hz
 Total length L
  450 mm
 Diameter D  60 mm
 Phase clamp coupling  V-Shaped electrode
 Earth clamp coupling  Universal
 Type  Analogic
 Alternating current (AC)  X
 Visual indication  X
 Self-test  X
 Lamp  X
 Metallic box  X
 Indoor use  X
 Incorporared piezoelectric generator  X
 Material  Polycarbonate
 Temperature  -25 …+55 °C

Additional information

Weight 2 kg
