Aluminium Substation T Connector with Suspension Strap Double Conductor to Double Conductor / 245 kV / 50 kA / 1 s

Aluminium Substation T Connector with Suspension Strap Double Conductor to Double Conductor / 245 kV / 50 kA / 1 s

€189,90 – €209,90 (EXW)

Clear
2031081 Category: Tags: ,
Delivery time: 14 Week(s)

Loading...

Description

 Country of origin  Austria
 Nominal voltage  245 kV
 Rated short circuit current  50 kA
 Rated time  1 s
 Rated frequency  50 … 60 Hz

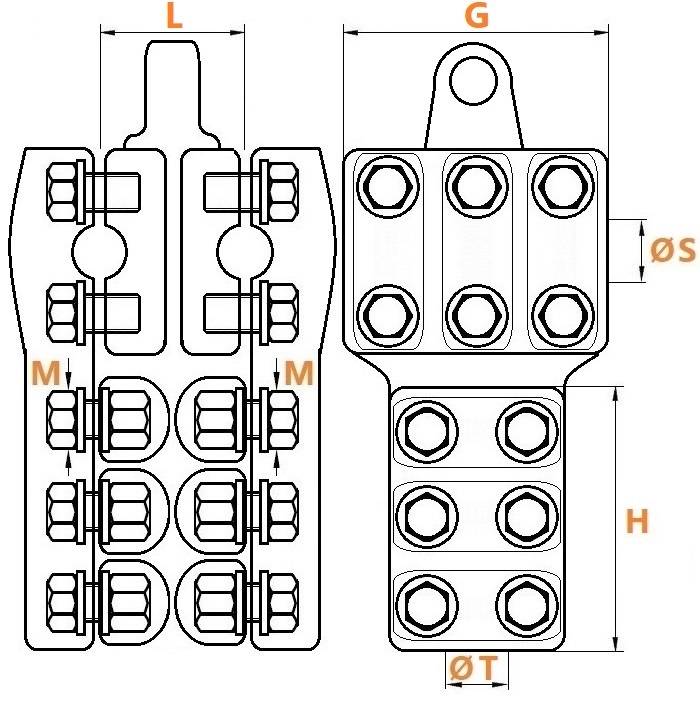

 Length G  120 mm
 Length H  120 mm
 Thread M  M10
 Wrench M  SW17
 Tightening torque  45 Nm
 Type  T Connector
 Self-locking nut  X
 Material
  Aluminum alloy
 Temperature  -40 …+80 °C
 Standard  DIN 8062-3
 Standard  DIN 46206
 Standard  DIN 2768
 Standard  DIN 1302
 Standard  EN 1706
 Standard  IEC 61284

Additional information

Weight 14 kg
