Aluminium Clad Steel Wire / ACS 117-A20SA / 117 mm² / Ø 14 mm / 19

Aluminium Clad Steel Wire / ACS 117-A20SA / 117 mm² / Ø 14 mm / 19

€5,83 (EXW)

2075006 Category: Tags: ,
Delivery time: 4 Week(s)

Loading...

Description

 Country of origin  Romania
 Conductor resistance  0.7370 Ω / km

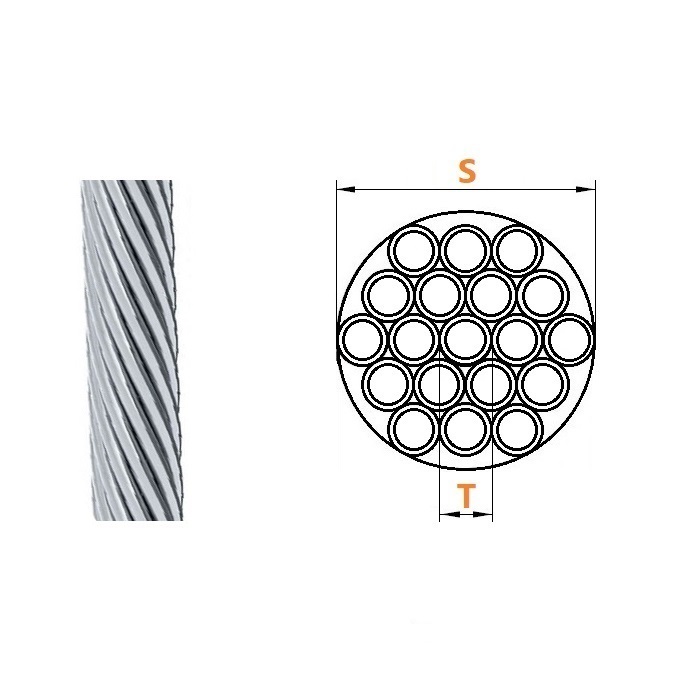

 Conductor cross-section S  117.00 mm²
 Conductor diameter S  14.00 mm
 Conductor diameter T  2.80 mm
 Failing load  156.77 kN
 Number of cores  19
 Type  ACS 117-A20SA
 Conductor material  Aluminium
 Temperature  -40 …+80 °C
 Weight  783.90 kg / km
 Standard  DIN 48201
 Standard  EN 50182
 Standard  IEC 61089

Additional information

Weight 4 kg
