90° Earthing Stirrup / 90° Ground Point Terminal / 90° Phase Fixed Point / 420 kV / 80 kA / 1 s / Aluminium

90° Earthing Stirrup / 90° Ground Point Terminal / 90° Phase Fixed Point / 420 kV / 80 kA / 1 s / Aluminium

€819,90 (EXW)

Clear
2037032 Category: Tags: ,
Delivery time: 8 Week(s)

Loading...

Description

 Country of origin  Austria
 Nominal voltage  420 kV
 Rated short circuit current  80 kA
 Rated time  1 s
 Rated frequency  50 … 60 Hz

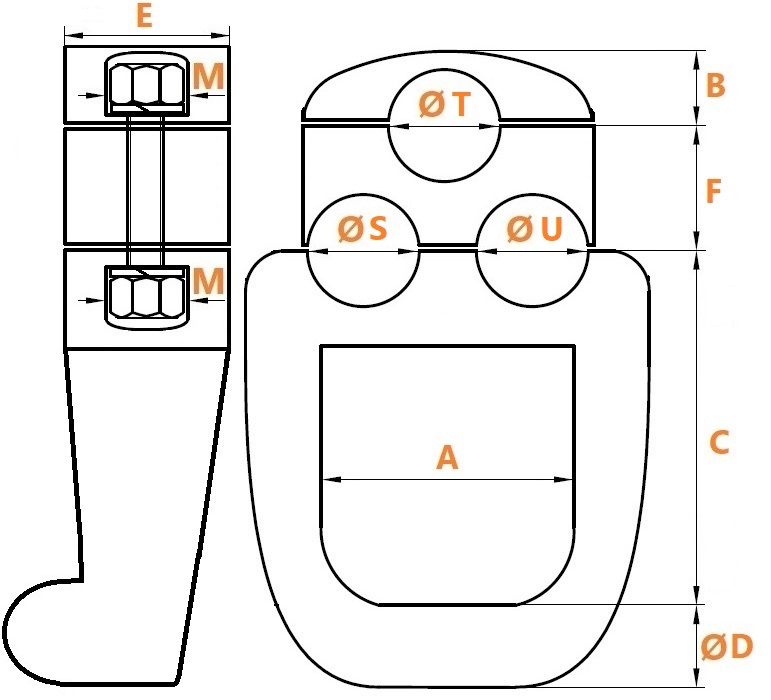

 Length A  320 mm
 Length B  35 mm
 Length C  160 mm
 Diameter D  25 mm
 Length E  60 mm
 Length F  100 mm
 Angled  90°
 Thread M  M10
 Wrench M  SW17
 Tightening torque  45 Nm
 Type  Triple conductor
 Self-locking nut  X
 Material  Aluminum alloy
 Temperature  -25 …+55 °C
 Standard  DIN 8062-3
 Standard  DIN ISO 1302 R2
 Standard  DIN ISO 2768
 Standard  DIN 46206/2
 Standard  DIN 46206/3
 Standard  EN 1706: 2020-06
 Standard  IEC 61284:1997

Additional information

Weight 8 kg
