60° Angled Fixed Ball Point with Terminal Lug / 14 kA / 0.5 s / Ø 20 mm / Copper

60° Angled Fixed Ball Point with Terminal Lug / 14 kA / 0.5 s / Ø 20 mm / Copper

€42,91 (EXW)

2034001 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  14 kA
 Rated time  0.5 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2

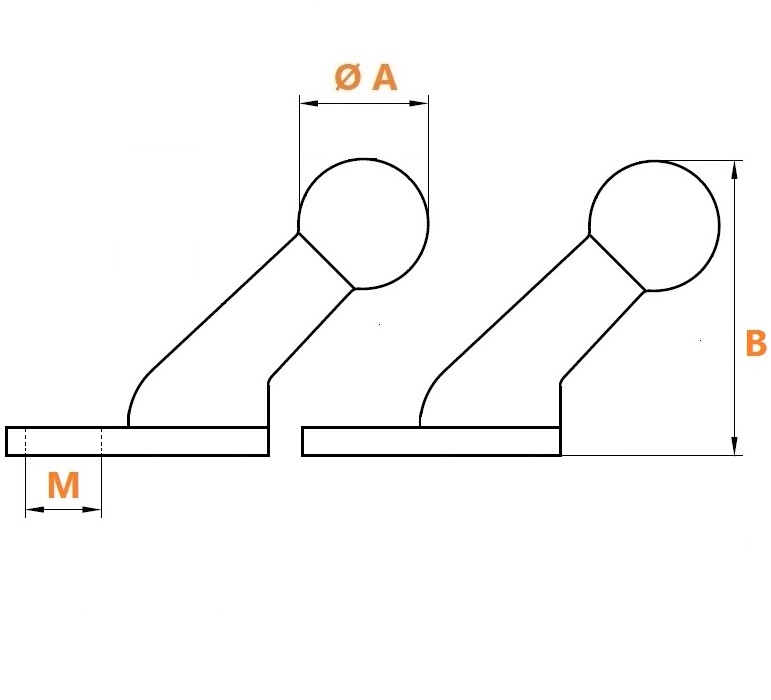

 Fixed ball point diameter A  20 mm
 Length B  43 mm
 Diameter M  12.5 mm
 Angled  60°
 Tightening torque  50 Nm
 Phase clamp coupling  Ball head
 Earth clamp coupling  Terminal lug
 Type  Angled
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  DIN VDE 0683-100
 Standard  DIN 48088-1
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 1 kg
