45° Angled Fixed Ball Point with Pin Thread / 19.5 kA / 0.5 s / Ø 20 mm / Copper

45° Angled Fixed Ball Point with Pin Thread / 19.5 kA / 0.5 s / Ø 20 mm / Copper

€34,68 (EXW)

2034040 Category: Tags: ,
Delivery time: 1 Week(s)

Loading...

Description

 Country of origin  Germany
 Rated short circuit current  19.5 kA
 Rated time  0.5 s
 Cable cross-section  16 mm2
 Cable cross-section  25 mm2
 Cable cross-section  35 mm2
 Cable cross-section  50 mm2
 Cable cross-section  70 mm2

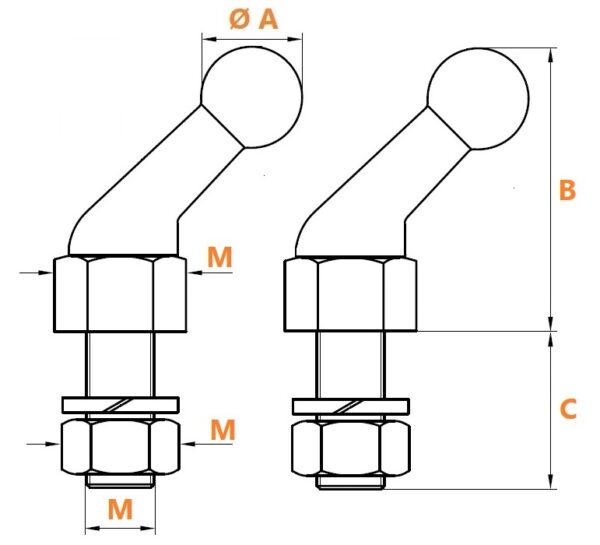

 Fixed ball point diameter A  20 mm
 Length B  72 mm
 Thread length C  45 mm
 Angled  45°
 Thread M  M16
 Wrench M  SW24
 Tightening torque  60 Nm
 Phase clamp coupling  Ball head
 Earth clamp coupling  Thread
 Type  Angled
 Self-locking nut  X
 Material  Copper alloy
 Temperature  -25 …+55 °C
 Standard  DIN VDE 0683-100
 Standard  DIN 48088-1
 Standard  EN 61230
 Standard  IEC 61230

Additional information

Weight 1 kg
