30° Earthing Stirrup / 30° Ground Point Terminal / 30° Phase Fixed Point / 420 kV / 63 kA / 0.5 s / Aluminium

30° Earthing Stirrup / 30° Ground Point Terminal / 30° Phase Fixed Point / 420 kV / 63 kA / 0.5 s / Aluminium

€249,90 (EXW)

Clear
2037004 Category: Tags: ,
Delivery time: 3 Week(s)

Loading...

Description

 Country of origin  Italy
 Nominal voltage  420 kV
 Rated short circuit current  63 kA
 Rated time  0.5 s
 Rated frequency  50 … 60 Hz

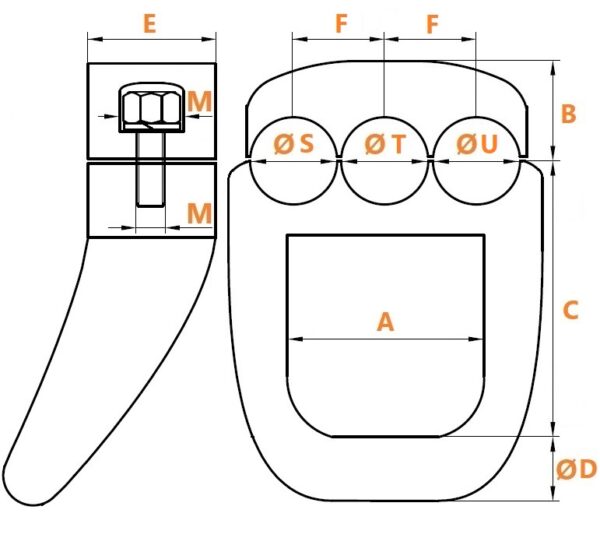

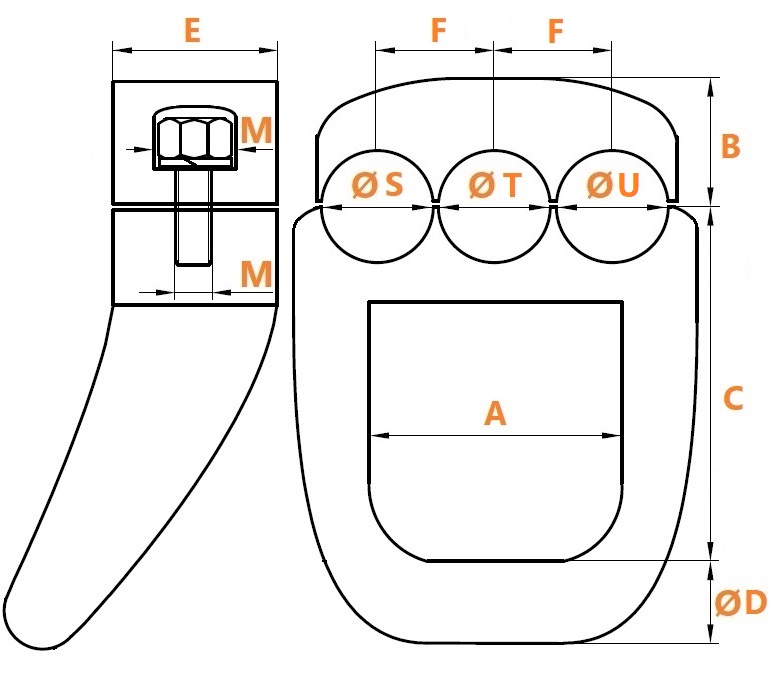

 Length A  210 mm
 Length B  35 mm
 Length C  160 mm
 Diameter D  30 mm
 Length E  60 mm
 Length F  100 mm
 Angled  30°
 Thread M  M12
 Wrench M  SW19
 Tightening torque  45 Nm
 Type  Triple conductor
 Self-locking nut  X
 Material  Aluminum alloy
 Temperature  -25 …+55 °C
 Standard  CEI EN 61219

Additional information

Weight 3 kg
