Description
Country of origin | Sweden |
Rated short circuit current | 21.1 kA |
Rated time | 1 s |
Cable cross-section | 16 mm2 |
Cable cross-section | 25 mm2 |
Cable cross-section | 35 mm2 |
Cable cross-section | 50 mm2 |
Cable cross-section | 70 mm2 |
Cable cross-section | 95 mm2 |

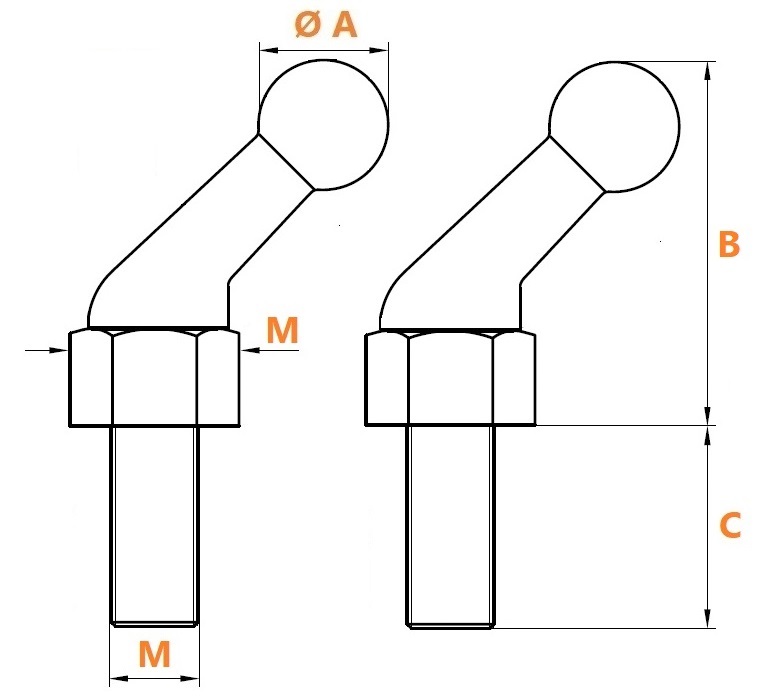

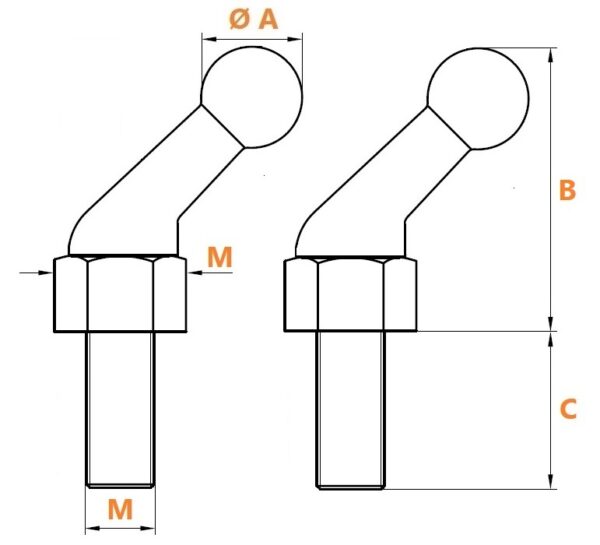

Fixed ball point diameter A | 20 mm |
Length B | 69 mm |
Thread length C | 33 mm |
Angled | 30° |
Thread M | M12 |
Wrench M | SW22 |
Tightening torque | 60 Nm |
Phase clamp coupling | Ball head |
Earth clamp coupling | Thread |
Type | Angled |
Material | Copper alloy |
Temperature | -25 …+55 °C |
Standard | EN 61230 |
Standard | IEC 61230 |
