Safety & Power

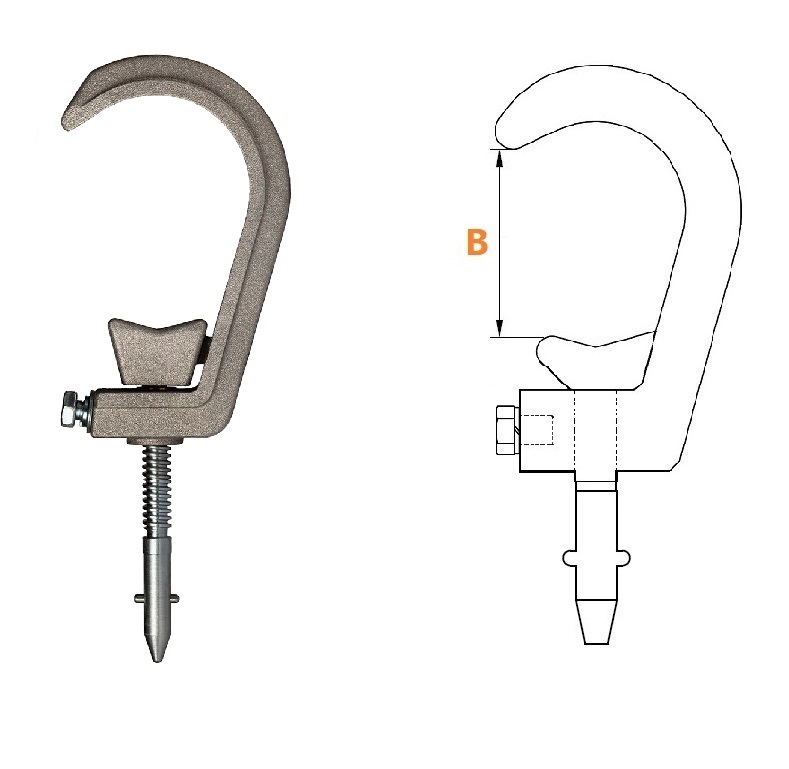

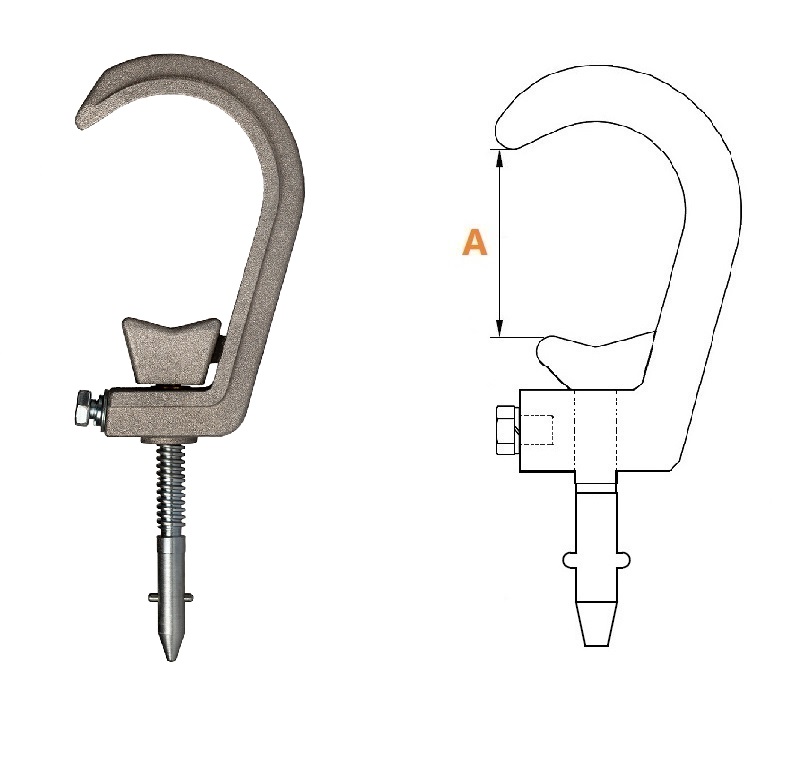

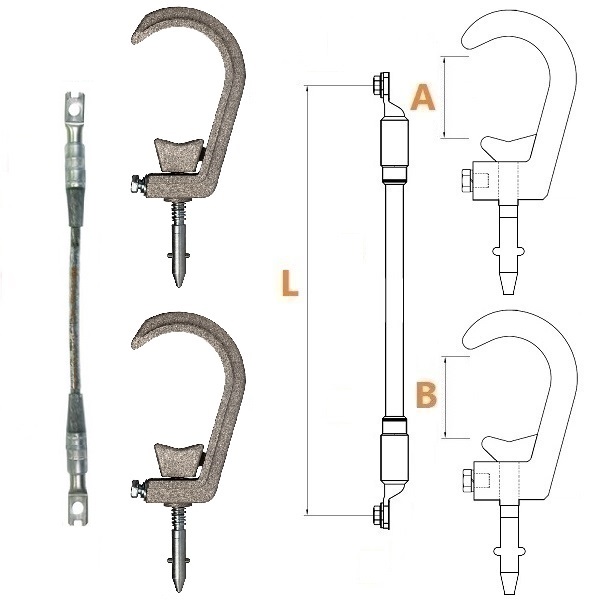

Single-Pole Earthing Device / 95 mm² / Phase Screw Clamp with T Pin Shaft / Aluminium

Single-Pole Earthing Device / 95 mm² / Phase Screw Clamp with T Pin Shaft / Aluminium

€317,90 – €3.590,90 (EXW)

Clear
1022447 Category: Tags: ,
Delivery time: 2 Week(s)

Loading...

Description

 Country of origin  Czech Republic
 Cable cross-section  95 mm2
 Phase clamp coupling  T Pin
 Earth clamp coupling  T Pin
 Phase clamp type  1031172
 Earth clamp type  1031172
 Overmoulded  X
 Water-proof cable entries  X
 Plasticsheathed cable entries  X
 Anti-kink protection  X
 Material  Aluminium
 Material  Thermoplastic
 Temperature  -25 …+55 °C
 Standard  IEC 61138
 Standard  IEC 61230

Additional information

Weight 2 kg
