Description
| Country of origin | Belgium |
| Conductor resistance | 0.2860 Ω / km |

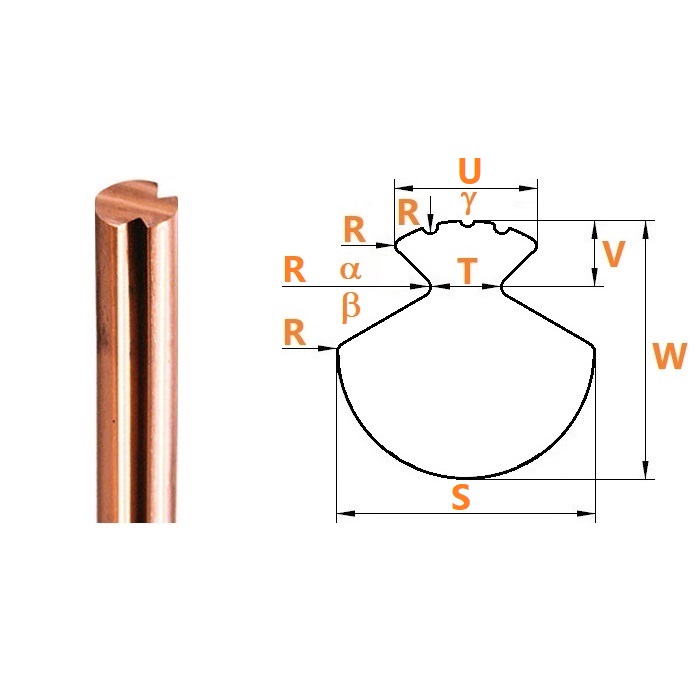

| Conductor cross-section S | 100.00 mm² |
| Conductor diameter S | 12.00 mm |
| Width T | 5.62 mm |
| Width U | 8.70 mm |
| Length V | 4.00 mm |
| Length W | 12.00 mm |
| Radius R | 0.25 mm |
| Radius R | 0.40 mm |
| Angle α | 51 ° |
| Angle β | 27 ° |
| Angle γ | 24 ° |
| Failing load | 49.5 kN |
| Elasticity modulus | 510 kN / mm² |
| Linear expansion coefficient | 17 * 10-6 K-1 |
| Type | RiM 100 |
| Conductor material | Copper magnesium |
| Temperature | -40 …+80 °C |
| Weight | 889 kg / km |
| Standard | EN 50149 |
